SF2394-SMA

Overview

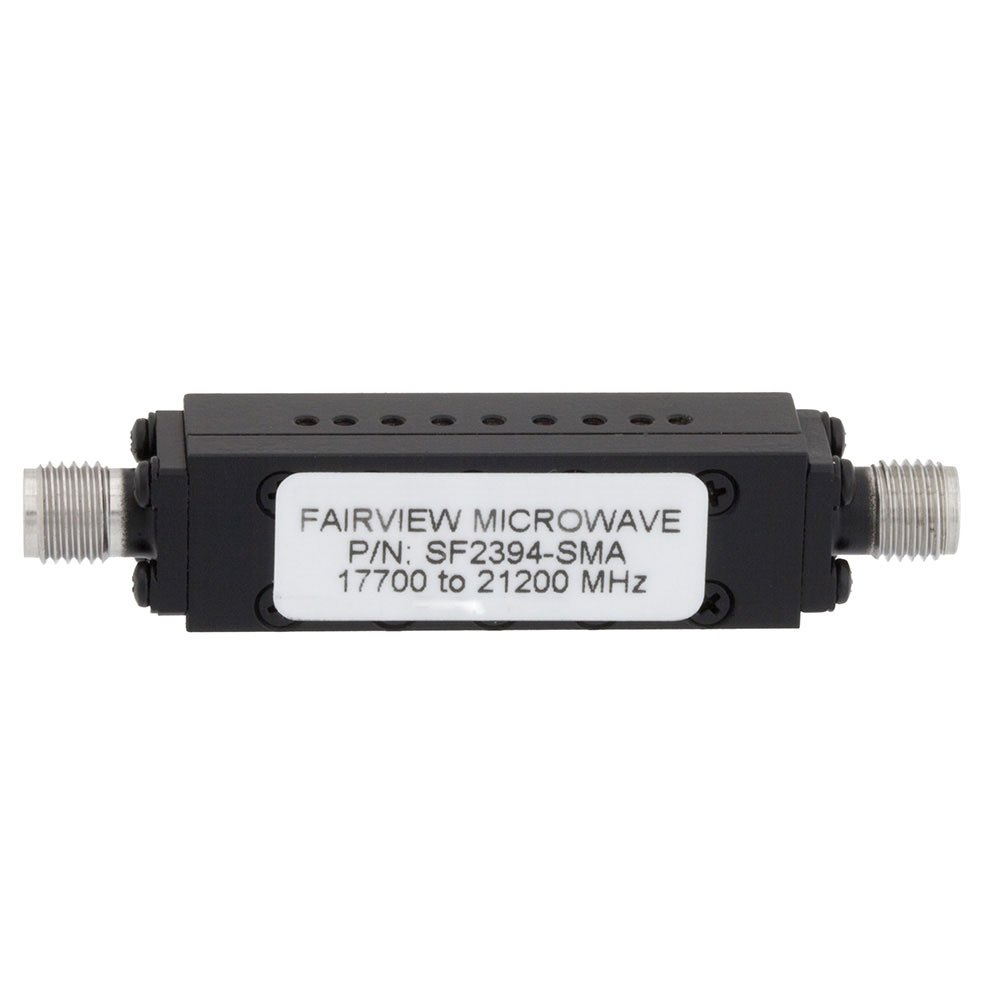

The SF2394-SMA is a nine-section bandpass cavity filter manufactured by Fairview Microwave. It operates with a center frequency of 19.45 GHz and provides a bandwidth of 3.5 GHz, covering the range from 17.7 GHz to 21.2 GHz. The component features SMA female connectors and is designed for VSAT applications. It complies with RoHS standards.

Feature Summary

• Nine-section cavity construction for high performance
• SMA female connector interface
• RoHS compliant manufacturing

Applications

• VSAT filtering systems
• Microwave signal processing
• RF interference suppression

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and detailed electrical specifications such as insertion loss and return loss. Ensure compatibility with existing SMA mating interfaces in the assembly. Confirm RoHS compliance status matches project requirements before finalizing procurement orders.

Selection Notes

Select this model when a narrow bandpass response centered at 19.45 GHz is required. The SMA interface dictates connector compatibility. Consider the physical size constraints of the cavity design against available mounting space in the RF chain architecture.

Part Context

This component belongs to the Fairview Microwave RF filter portfolio. It serves as a specialized passive device for microwave frequencies. The product line focuses on high-reliability interconnects and filtering solutions for communication infrastructure.

Replacement Considerations

No public substitute part numbers are documented for this specific model. Verify exact frequency and bandwidth requirements when evaluating alternative filters from other manufacturers.
