SF2402-SMA

Overview

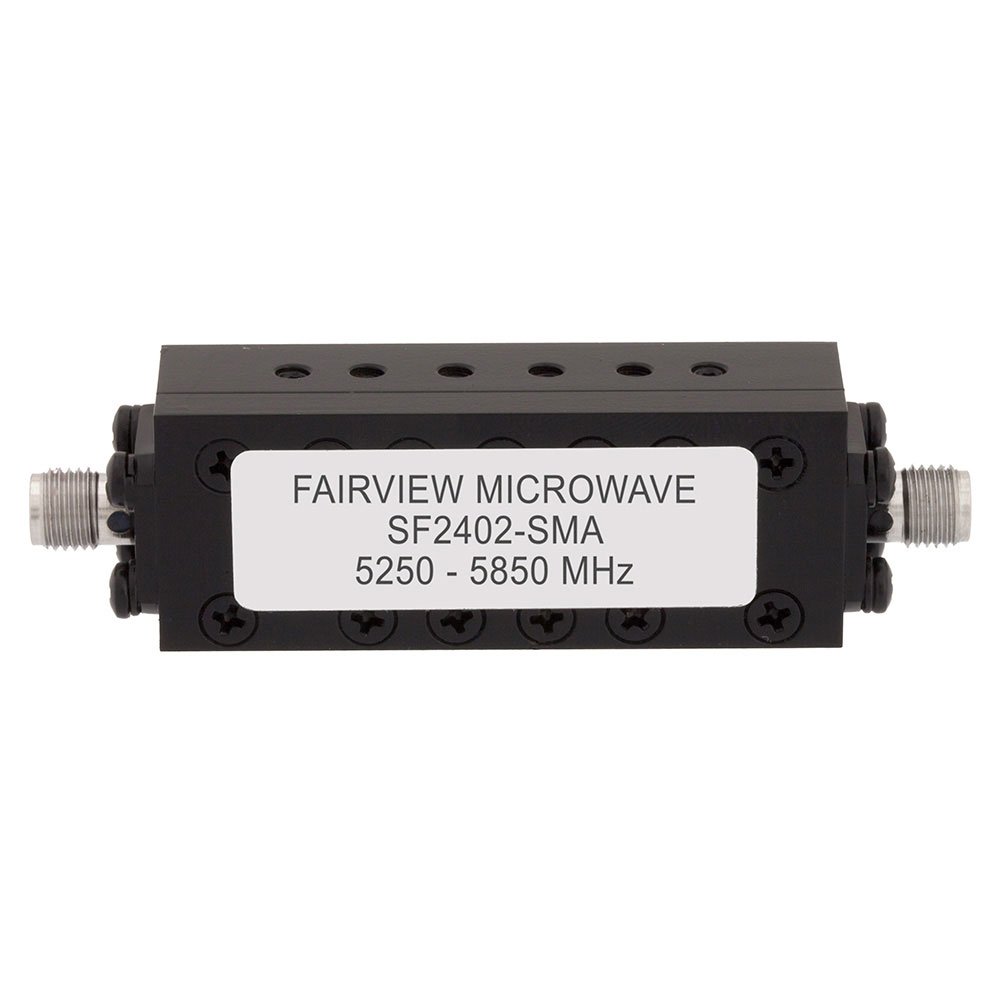

The SF2402-SMA is a bandpass cavity filter manufactured by Fairview Microwave. It operates within a frequency range of 5.25 GHz to 5.85 GHz, with a center frequency specification of 5.85 GHz. The component utilizes SMA female connectors for interface connectivity. It is packaged in bags and is classified under signal conditioning filters.

Feature Summary

• Bandpass filtering capability within the specified microwave frequency range
• Cavity construction for stable signal conditioning
• SMA female connector interfaces for standard integration

Applications

• Microwave signal conditioning systems
• RF communication equipment requiring specific bandpass characteristics
• Test and measurement instrumentation

Procurement Notes

Verify the exact electrical specifications against the official Fairview Microwave datasheet prior to procurement. Confirm that the SMA female interface and 5.25-5.85 GHz operational range align with system requirements. Ensure compatibility with existing RF infrastructure and mounting constraints.

Selection Notes

Select this component when a fixed bandpass filter is required for the 5.25 GHz to 5.85 GHz spectrum. The SMA female interface dictates mating connector compatibility. Consider the cavity construction for environmental stability compared to other filter types.

Part Context

This part belongs to the Fairview Microwave signal conditioning category, specifically designed as a bandpass cavity filter. It serves as a specialized component for managing RF signals within defined frequency bands, distinct from general-purpose interconnects or passive components.

FAQ

What is the operating frequency range of the SF2402-SMA?

The SF2402-SMA operates from 5.25 GHz to 5.85 GHz.

What type of connectors does this filter use?

It uses SMA female connectors on both ends.
