SF2403-SMA

Overview

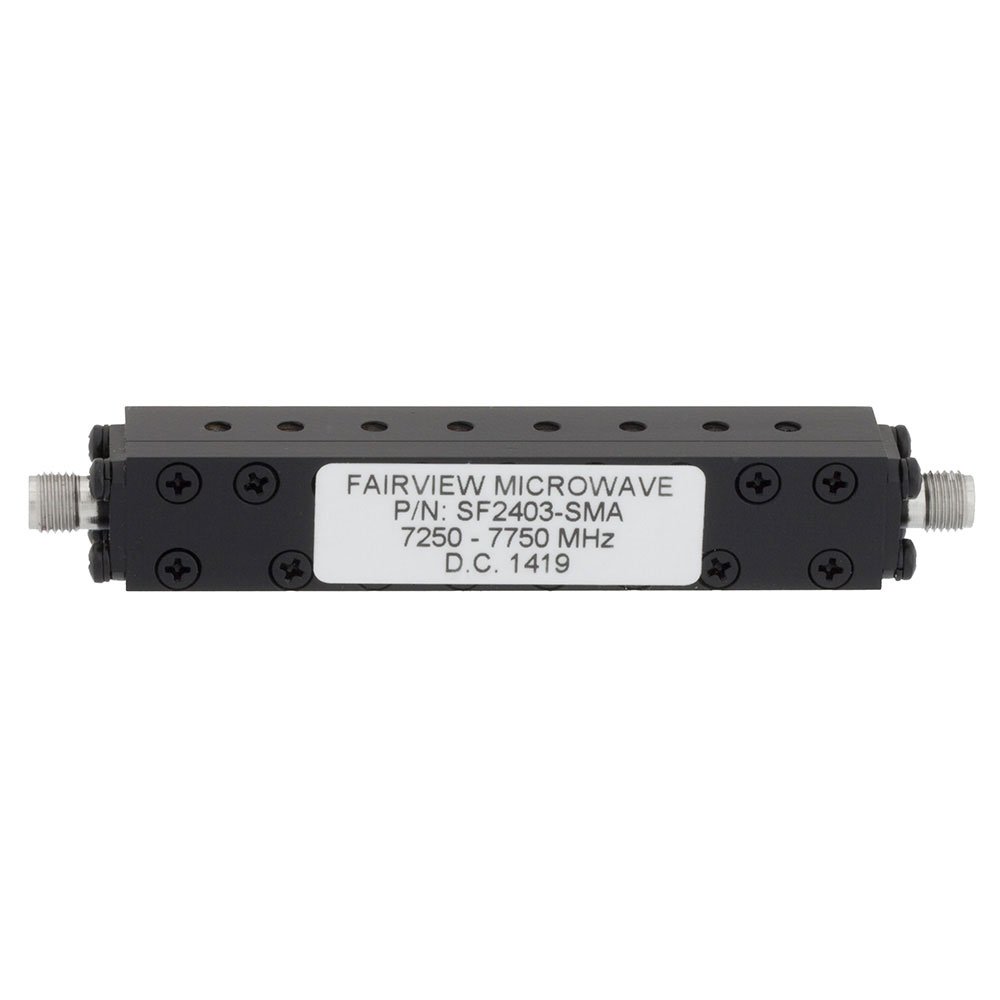

The SF2403-SMA is a passive bandpass cavity filter manufactured by Fairview Microwave. It operates within a frequency range of 7.25 GHz to 7.75 GHz, with a center frequency of 7500 MHz and a bandwidth of 500 MHz. The component features SMA female connectors and exhibits an insertion loss of 1.75 dB. Designed as a module, it provides signal filtering capabilities for high-frequency applications requiring precise spectral selection.

Feature Summary

• Passive bandpass cavity filter technology
• SMA female connector interface
• Module package configuration

Applications

• RF signal processing systems
• Wireless communication infrastructure
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for exact electrical tolerances and mechanical dimensions before integration. Confirm that the SMA connector polarity and mating requirements align with the system design. Ensure environmental conditions match the component's operational specifications.

Selection Notes

Select this component when a fixed center frequency of 7.5 GHz with a 500 MHz bandwidth is required. The low insertion loss of 1.75 dB makes it suitable for applications where signal integrity is critical. Verify compatibility with existing SMA interfaces in the RF chain.

Part Context

This part belongs to the Fairview Microwave RF filters category, specifically designed for microwave frequency applications. It serves as a passive filtering solution within the company's portfolio of interconnect and signal conditioning components, targeting industries requiring stable performance at X-band frequencies.

Replacement Considerations

No public substitute part numbers are documented for this specific model. Evaluate alternative bandpass filters from other manufacturers only if they meet the identical 7.25-7.75 GHz frequency range, SMA connectivity, and insertion loss specifications.
