SF2404-SMA

Overview

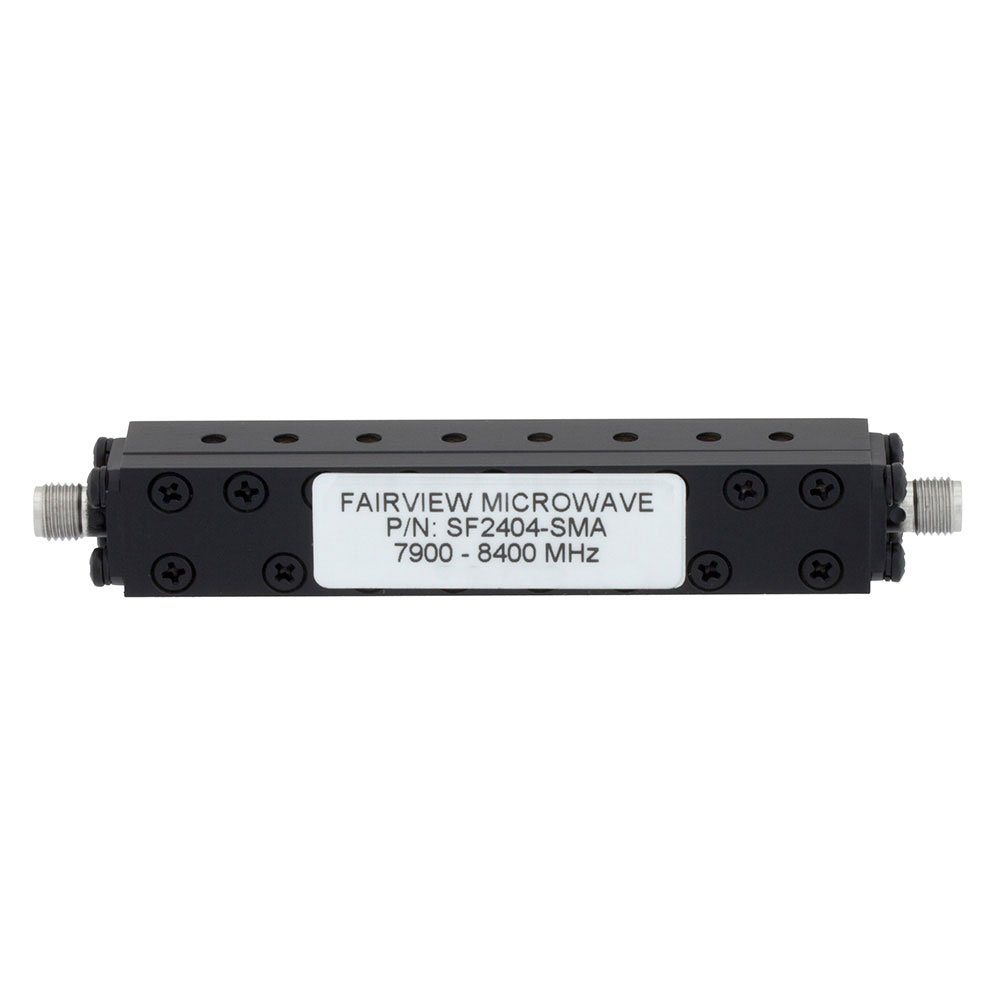

The SF2404-SMA is a bandpass cavity filter manufactured by Fairview Microwave, designed for radio frequency signal conditioning. It operates within a frequency range of 7.9 GHz to 8.4 GHz, featuring an SMA female connector interface on both ends. The unit exhibits a center frequency of 8.15 GHz with a bandwidth of 500 MHz and an insertion loss of 1.75 dB.

Feature Summary

• Cavity construction for stable RF performance
• SMA female connectors for standard interfacing
• Bandpass filtering capability in the Ku-band

Applications

• Wireless communication systems
• Test and measurement equipment
• Signal conditioning modules

Procurement Notes

Verify the specific datasheet version for precise VSWR and rejection specifications. Confirm connector gender and mounting requirements against system schematics. Ensure environmental ratings match operational conditions. Validate RoHS compliance status if required by procurement policy.

Selection Notes

Select this component when a fixed 500 MHz bandwidth filter is required at 8.15 GHz. The SMA interface suits low-power applications. Consider thermal management if operating near maximum power limits. Verify physical dimensions fit the enclosure constraints.

Part Context

Fairview Microwave produces specialized RF filters for niche applications. This model belongs to their bandpass filter series, targeting specific frequency bands like the 7.9-8.4 GHz range. It serves as a passive component for signal isolation.

Replacement Considerations

No public substitute part numbers are documented. Cross-reference with other 8.15 GHz bandpass filters only if electrical parameters and connector types match exactly.
