Product Detailed Parameters
- Description：FILTER, SAW, 870.5 MHZ, 6SMD
- Series：-
- Mfr：RFMi
- Package：Tape & Reel (TR),Tape & Reel (TR),Bag
- Frequency - Center：870.5MHz
- Bandwidth：-
- Insertion Loss：3.5dB
- Ratings：AEC-Q200
- Applications：General Purpose
- Mounting Type：Surface Mount

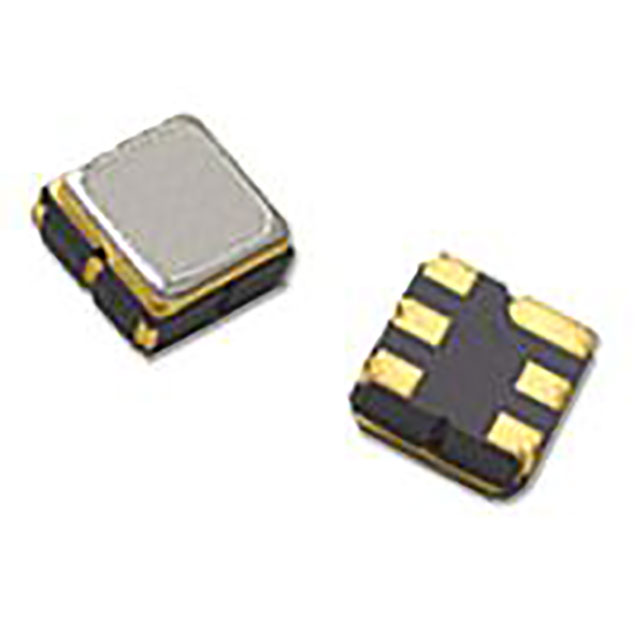

- Package / Case：6-SMD, No Lead
- Height (Max)：0.054" (1.38mm)
- Size / Dimension：0.118" L x 0.118" W (3.00mm x 3.00mm)
Download product information
Overview
The SF2480E is a general-purpose Surface Acoustic Wave (SAW) bandpass filter manufactured by RFMi. It operates at a center frequency of 870.5 MHz with a bandwidth of 3.5 dB. The device covers a frequency range from 865 MHz to 872 MHz and has a rated voltage of 4 V. It is housed in a compact 6-SMD, no-lead package designed for surface mount assembly.
Feature Summary
- Utilizes Surface Acoustic Wave technology for signal conditioning
- Designed as a general-purpose RF bandpass filter
- Compact 6-pin SMD package construction
Applications
- RF signal filtering in communication systems
- General purpose radio frequency applications
- Signal conditioning circuits
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributor before procurement. Confirm that the 6-SMD no-lead package dimensions match your PCB footprint requirements. Ensure the 4 V rated voltage aligns with your circuit design constraints. Cross-reference the 870.5 MHz center frequency specification against your system's operational band to ensure compatibility.
Selection Notes
Select this component when a SAW-based bandpass filter is required for the 865–872 MHz range. The 3.5 dB bandwidth defines the passband characteristics. Consider the 6-SMD package size for space-constrained designs. Verify that the general-purpose classification meets the performance needs of your specific RF application without requiring specialized custom tuning.
Part Context
This part belongs to the SAW Filters category within RFMi’s portfolio. It is classified as a Signal Conditioning device. The product line includes various frequency-specific filters for RF applications. The SF2480E specifically targets the ~870 MHz region using ceramic-based acoustic wave propagation.
FAQ
What is the operating frequency range of the SF2480E?
The SF2480E operates within a frequency range of 865 MHz to 872 MHz.
What type of filter technology does the SF2480E use?
It uses Surface Acoustic Wave (SAW) technology.
