SF30A F

Overview

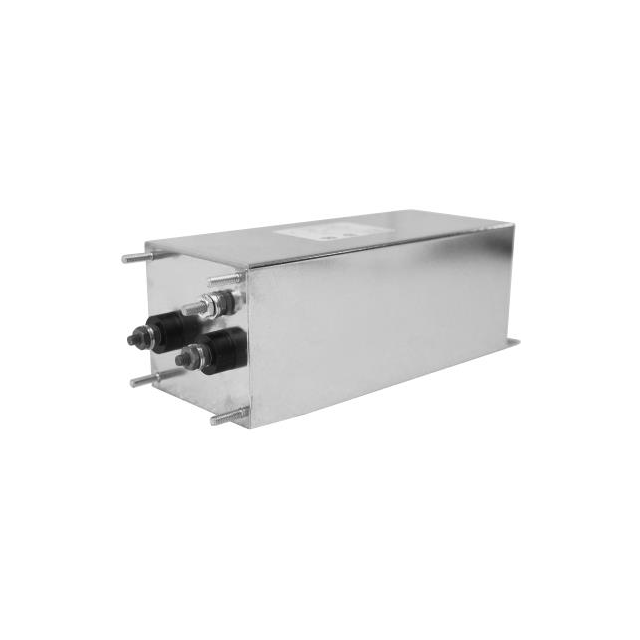

The SF30A F is a single-phase high-performance switch-mode EMI filter manufactured by Astrodyne TDI. It is rated for 30 A current and 250 VAC voltage at 50/60 Hz operating frequencies. The component utilizes a two-stage filtering architecture to suppress electromagnetic interference in power line applications.

Feature Summary

• Two-stage filtering design for enhanced noise suppression
• High-performance construction optimized for switch-mode environments

Applications

• Single-phase power line filtering
• Switch-mode equipment protection

Procurement Notes

Verify the exact part number designation, including suffixes, against official manufacturer documentation before procurement. Confirm that the specific variant matches the required electrical ratings and mounting configuration. Ensure compliance with relevant safety standards applicable to your region and application environment.

Selection Notes

Select this component for single-phase AC power lines requiring robust EMI suppression in switch-mode contexts. Ensure the 30 A current rating and 250 VAC voltage limit align with system specifications. Verify compatibility with the threaded post termination style and chassis or panel mounting requirements.

Part Context

This component belongs to the SF series of power line filters from Astrodyne TDI. It is categorized as a high-performance switch-mode EMI filter designed for demanding electromagnetic compatibility scenarios within single-phase power distribution systems.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Do not assume cross-compatibility with other series without confirming electrical and mechanical parameter alignment.

FAQ

What is the current rating of the SF30A F?

The SF30A F is rated for 30 A.

What type of termination does this filter use?

It uses a threaded post termination style.
