SF33M6-1224.000-F108IL4.4K

Overview

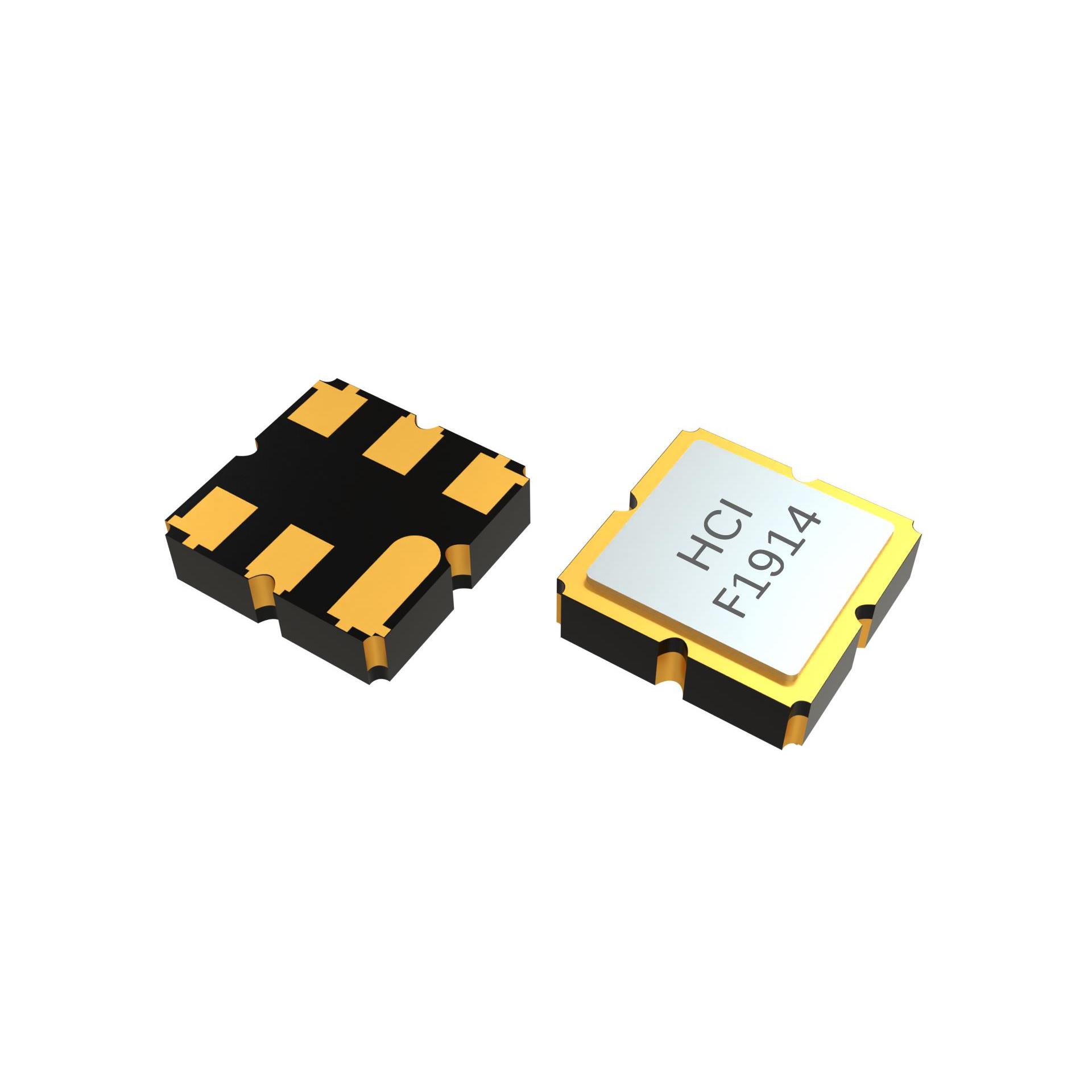

The SF33M6-1224.000-F108IL4.4K is a quartz crystal oscillator manufactured by Suzhou Hangjing Elec&Tech Co.,Ltd. It operates at a nominal frequency of 1224.000 MHz. The component utilizes the F108IL package configuration and includes an integrated load capacitance specification of 4.4K, indicating specific internal circuit integration for clock signal generation.

Feature Summary

• Integrates oscillation chip with quartz crystal resonator
• Provides stable reference frequency output
• Designed for precision timing applications

Applications

• Communication systems
• Navigation equipment
• Mobile terminals
• Precision instruments

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility with system requirements. Confirm that the F108IL package dimensions and electrical specifications match the design constraints. Cross-reference the 4.4K load parameter with circuit design needs. Ensure sourcing from authorized distributors to guarantee component authenticity and quality standards.

Selection Notes

Select this component when a high-frequency reference signal near 1.2 GHz is required for quartz-based timing circuits. Consider the integrated nature of the module which combines the resonator and driver. Evaluate the physical footprint of the F108IL package against available PCB space. Assess the suitability for environments requiring precision instrumentation or military-grade reliability as indicated by general product lines.

Part Context

Suzhou Hangjing Elec&Tech Co.,Ltd specializes in quartz frequency controlling units. This model belongs to their range of active clock modules designed for various electronic assemblies. The company focuses on research and development of such components for industrial and commercial use.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
