SFBLC5000152MX0

Overview

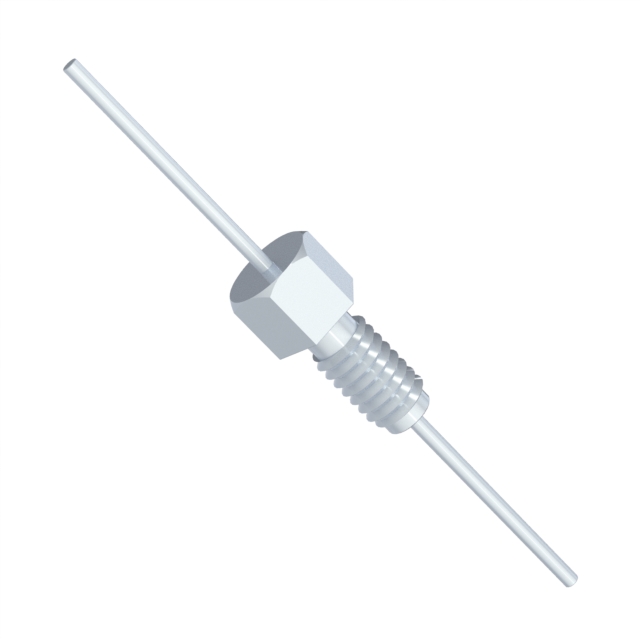

The Knowles Syfer SFBLC5000152MX0 is a feedthrough capacitor with a capacitance of 1.5 nF and a DC voltage rating of 500 VDC. It features an X7R dielectric, ±20% tolerance, and a maximum DC current rating of 10 A. The component operates within a temperature range of -55°C to +125°C and has an insulation resistance of 10 GOhms. Its physical dimensions are 9.2 mm in length and 4.75 mm in diameter, utilizing a solder termination type.

Feature Summary

• Provides EMI filtering through axial feedthrough architecture
• Supports high continuous current loads up to 10 A
• Utilizes X7R ceramic dielectric for stable performance

Applications

• EMI suppression in power distribution lines
• High-current signal filtering applications
• Industrial equipment protection circuits

Procurement Notes

Verify the specific suffix MX0 against official datasheets to confirm exact mechanical tolerances and termination specifications. Confirm RoHS compliance status directly with the manufacturer or authorized distributors prior to procurement. Ensure the 10 A current rating aligns with your system's thermal management capabilities.

Selection Notes

Select this component when a 1.5 nF capacitance value is required for high-voltage EMI filtering. The 10 A current rating distinguishes it from lower-capacity variants. Verify that the 4.75 mm diameter fits the panel cutout requirements. Ensure the operating environment remains within the specified -55°C to +125°C range for reliable X7R performance.

Part Context

This part belongs to the SFBC series of EMI feedthrough filters manufactured by Knowles Syfer. These components are designed for robust electromagnetic interference suppression in demanding electronic environments. The series offers various capacitance values and current ratings to suit different circuit protection needs.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official cross-reference guides for potential alternatives.
