SFD26

Overview

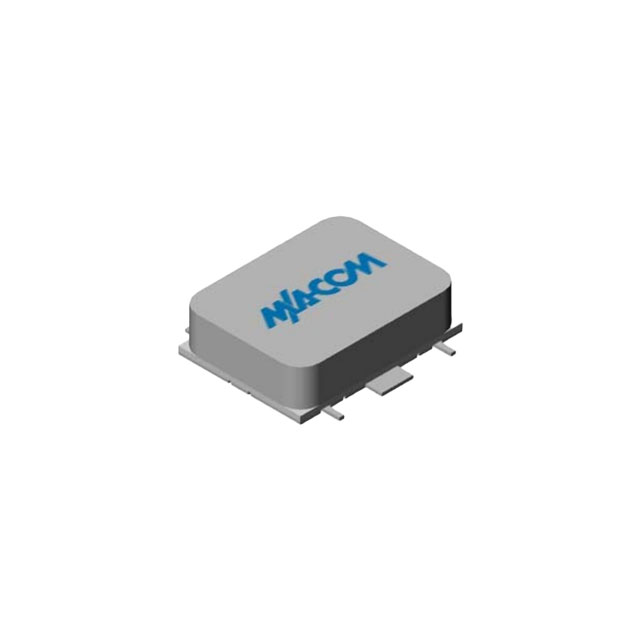

The SFD26 is a surface-mount RF IC frequency doubler manufactured by MACOM Technology Solutions. It operates within a frequency range of 100MHz to 6.6GHz, designed for general-purpose signal conditioning applications requiring frequency multiplication. The component utilizes an enhanced 4-SMD module package with SMA connectors, ensuring reliable performance in demanding environments. This device supports wideband operation suitable for various telecommunications and industrial systems.

Feature Summary

• Surface-mount design for compact integration
• Wide frequency coverage from 100MHz to 6.6GHz
• Enhanced 4-SMD module packaging

Applications

• Telecommunications systems
• Industrial equipment
• Defense and datacenter infrastructure

Procurement Notes

Verify the specific ordering suffix and package variant against the official MACOM datasheet before procurement. Ensure compatibility with the required SMA connector configuration and surface-mount footprint. Confirm that the 100MHz to 6.6GHz operational range meets the system's frequency multiplication requirements. Cross-reference the manufacturer product number SFD26 with authorized distributors to ensure authenticity and traceability.

Selection Notes

Select the SFD26 when a general-purpose frequency doubler is needed for signals between 100MHz and 6.6GHz. The surface-mount 4-SMD package facilitates automated assembly and space-constrained designs. Consider this component for applications prioritizing RF efficiency and reduced system size, weight, and power. Validate thermal and electrical specifications against the target application environment.

Part Context

The SFD26 belongs to MACOM’s portfolio of radio, microwave, and millimeter-wave semiconductor devices. It is part of the FD26 family, specifically engineered as a surface-mount variant. MACOM designs these components to maximize RF efficiency and enable reliable operation in telecommunications, industrial, and defense sectors.

Replacement Considerations

The FD26C is a related frequency doubler model from the same family. Verify if the through-hole or different package variant of the FD26 series offers necessary interface differences. Consult the official datasheet for pinout and electrical equivalence before substitution.
