Product Detailed Parameters
- Description：CER FILTER 10.7MHZ FM
- Series：CERAFIL®, SFECF
- Mfr：Murata Electronics
- Package：Tape & Reel (TR)
- Frequency：10.7MHz Center
- Impedance：330Ohm
- Bandwidth：150 kHz
- Insertion Loss：6dB
- Filter Type：FM
- Mounting Type：Surface Mount
- Package / Case：1412 (3531 Metric), 6 PC Pad
- Size / Dimension：0.136" L x 0.122" W (3.45mm x 3.10mm)
- Height (Max)：0.055" (1.40mm)
Download product information
Overview

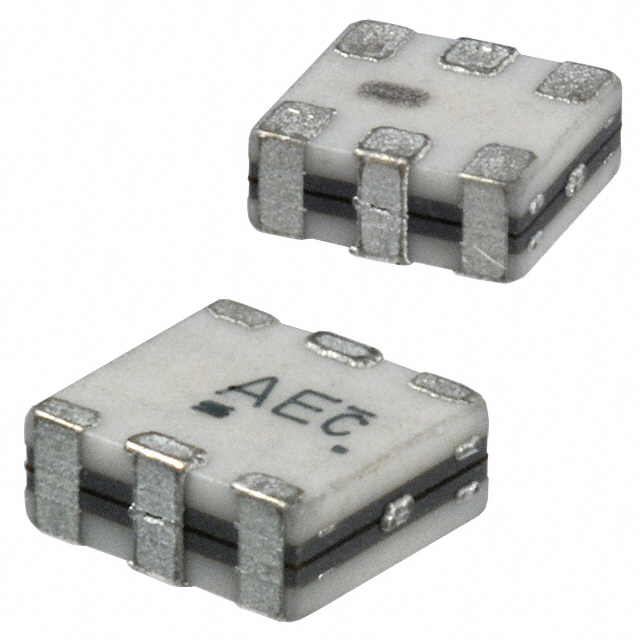

The Murata Electronics SFECF10M7DF00-R0 is a ceramic filter designed for signal conditioning applications. It operates at a center frequency of 10.7 MHz with a bandwidth of 150 kHz and an impedance of 330 Ohms. The component features a surface-mount package (1412/3531 Metric) with six pads, measuring 3.45mm x 3.10mm x 1.40mm. It exhibits an insertion loss of 6dB and functions within a temperature range of -40°C to +85°C. This device is part of the CERAFIL SF series and is currently classified as a discontinued product.
Feature Summary
- Utilizes ceramic technology for stable FM signal filtering
- Designed for surface-mount board assembly
- Optimized for intermediate frequency processing
Applications
- FM radio receiver circuits
- Intermediate frequency filtering in communication devices
- Signal conditioning in consumer electronics
Procurement Notes
Verify end-of-life status before integration. Confirm RoHS compliance and REACH SVHC details via official documentation. Check for authorized distributors handling remaining stock or approved alternates. Ensure design-in compatibility with existing footprints if retrofitting.
Selection Notes
Select this component for designs requiring a 10.7 MHz ceramic filter with specific 150 kHz bandwidth constraints. Verify that the 330 Ohm impedance matches system requirements. Consider the SMD package dimensions for PCB layout constraints. Evaluate thermal performance against the specified operating temperature range.
Part Context
This component belongs to the Murata CERAFIL SF series, which specializes in ceramic filters for signal conditioning. The SFECF variant specifically targets FM intermediate frequency applications. The series is known for providing reliable filtering solutions in compact surface-mount packages for various electronic systems.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Murata technical support for current alternatives to discontinued components.
