SFECV10M7JA00-R0

Overview

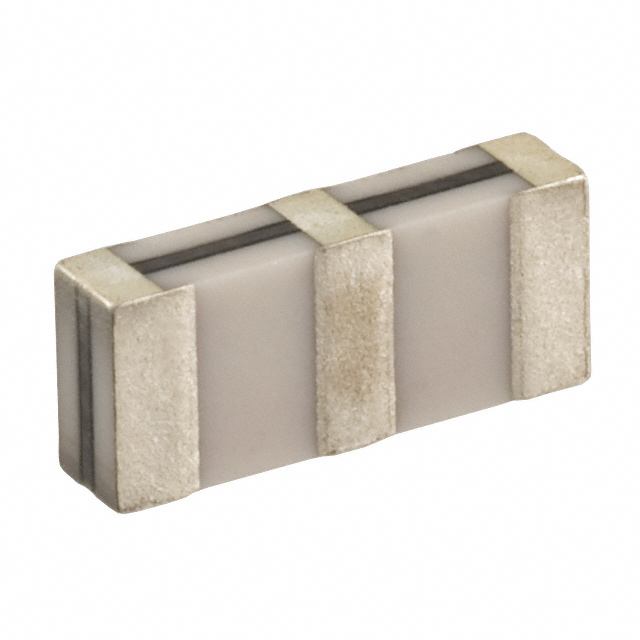

The Murata Electronics SFECV10M7JA00-R0 is a ceramic signal filter designed for FM receiver applications. It operates at a center frequency of 10.7 MHz with a bandwidth of 150 kHz and an impedance of 330 Ohms. The component utilizes SMD/SMT surface mount technology in a 2706 (6915 Metric) package, measuring 6.90 mm x 2.90 mm x 1.70 mm max. It functions within a temperature range of -20°C to +80°C.

Feature Summary

• Designed specifically for FM receiver signal conditioning
• Utilizes CERAFIL ceramic filter technology
• Surface mount construction for board integration

Applications

• FM receiver circuits
• Intermediate frequency filtering
• Signal conditioning modules

Procurement Notes

Verify current availability status as the product is listed as End-of-Life or Not Recommended for New Designs. Confirm RoHS compliance details via official datasheets before procurement. Check for valid substitute part numbers if original supply is unavailable.

Selection Notes

Select this component for FM applications requiring a 10.7 MHz center frequency. Ensure the design accommodates the 330 Ohm impedance and 150 kHz bandwidth. Verify that the operating environment stays within the specified -20°C to +80°C temperature range.

Part Context

This component belongs to the Murata CERAFIL SF series of ceramic filters. It is manufactured by Murata Electronics and is categorized under signal conditioning products. The specific model indicates its role in handling intermediate frequencies for radio reception systems.

Replacement Considerations

Check for discontinued status notifications. Official substitutes may include other SFECV variants with compatible electrical parameters. Consult Murata documentation for approved cross-references.
