SFH 7222-Z

LED Indication - Discrete Overview

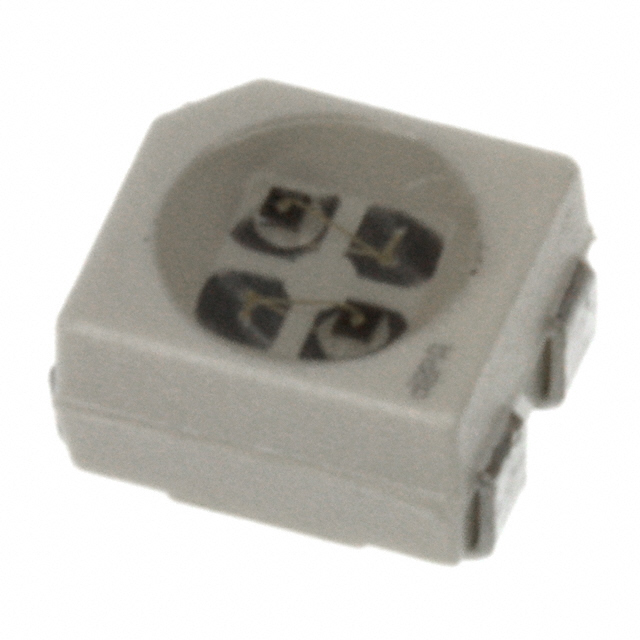

The SFH 7222-Z is a green Multi TOPLED indicator LED manufactured by ams OSRAM. It features a clear, round lens with a flat top and emits light at a peak wavelength of 565 nm and a dominant wavelength of 570 nm. The component operates with a typical forward voltage of 2 V at a test current of 10 mA, producing an intensity of 0.25 mcd. It utilizes a 4-PLCC surface-mount package measuring 3.20 mm in length, 2.80 mm in width, and up to 2.10 mm in height. The device offers a viewing angle of 60 degrees and is RoHS compliant.

LED Indication - Discrete Feature Summary

• Green emission within the visible spectrum for high visibility applications
• Standard surface-mount PLCC-4 package for automated assembly compatibility
• Clear lens design providing consistent optical transmission

LED Indication - Discrete Applications

• Status indication on electronic control boards
• Visual signaling in consumer appliances
• Indicator lights in industrial instrumentation

LED Indication - Discrete Procurement Notes

Verify part authenticity through authorized channels as this component is marked as obsolete. Confirm that the specific ordering suffix matches the required packaging format. Ensure compliance with RoHS3 regulations if applicable to your manufacturing standards. Check for moisture sensitivity level requirements during storage and handling procedures before soldering.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator is required for low-current visual signaling. The PLCC-4 footprint allows for easy integration into existing designs utilizing similar form factors. Consider the 60-degree viewing angle for optimal line-of-sight visibility. Evaluate thermal management requirements based on the specified forward voltage and current parameters.

LED Indication - Discrete Part Context

This component belongs to the Multi TOPLED series, designed for general-purpose indication. It represents a standard surface-mount solution from ams OSRAM's legacy portfolio. The PLCC-4 package is widely used in various electronics sectors for reliable LED mounting. This specific model provides a cost-effective option for basic visual feedback needs.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical compatibility with existing PCB footprints when considering alternative components. Ensure electrical characteristics such as forward voltage and luminous intensity meet system requirements if sourcing substitutes.
