SFH600-0

Overview

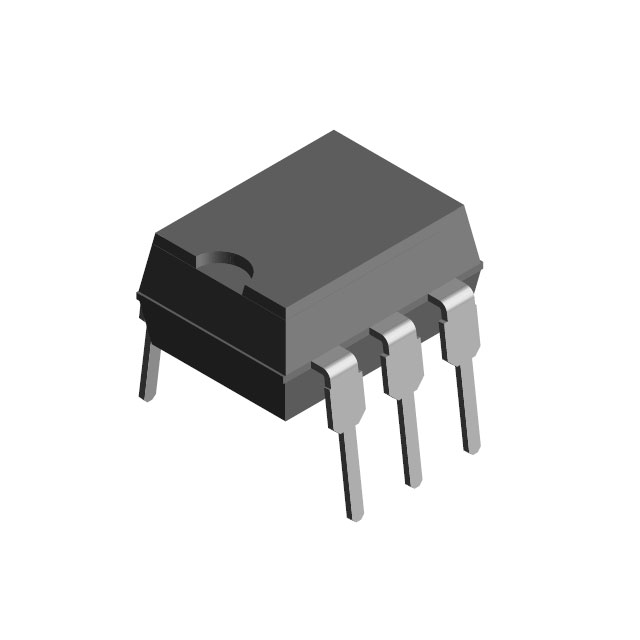

The SFH600-0 is a single-channel transistor output optocoupler featuring a GaAs LED emitter and a silicon planar phototransistor detector with an accessible base terminal. It provides high isolation voltage of 5300 Vrms and operates within a temperature range of -55 °C to +100 °C. The device supports a maximum collector current of 50 mA, a forward voltage of approximately 1.25 V, and a minimum current transfer ratio of 40%. Packaged in a 6-DIP configuration, it ensures reliable signal transmission across isolated circuits.

Feature Summary

• Integrates a GaAs infrared LED emitter with a silicon planar phototransistor for efficient optical coupling
• Provides enhanced electrical isolation capability through a dedicated base terminal on the phototransistor
• Designed for robust operation across extended industrial temperature ranges up to 100 °C

Applications

• Industrial control systems requiring galvanic isolation
• Signal transmission in measurement and testing equipment
• Power supply feedback loops for circuit protection

Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheet specifications. Confirm package type matches the required 6-DIP form factor. Ensure compliance with RoHS standards if applicable to your assembly process. Cross-reference part numbers carefully as this specific variant may be listed as obsolete in some distributor catalogs; validate availability through authorized channels before finalizing procurement plans.

Selection Notes

Select this component when a base-accessible phototransistor is necessary for speed or linearity improvements over standard configurations. Consider the 5300 Vrms isolation rating for applications demanding strict safety separation between input and output circuits. Evaluate the 40% minimum CTR to ensure sufficient gain for your logic interface requirements under worst-case temperature conditions.

Part Context

This device belongs to Vishay's standard optocoupler family, utilizing direct optical coupling between an infrared LED and a phototransistor. It serves as a fundamental building block for isolating low-voltage control signals from higher-voltage power stages. The inclusion of a base pin allows for external biasing or faster switching characteristics compared to non-base variants.

Replacement Considerations

SFH601-2 and SFH608-3 are industry-standard alternatives within the same product category. Verify pinout compatibility and electrical parameters such as CTR and isolation voltage before substitution.
