SFSCE10M7WF04-R0

Overview

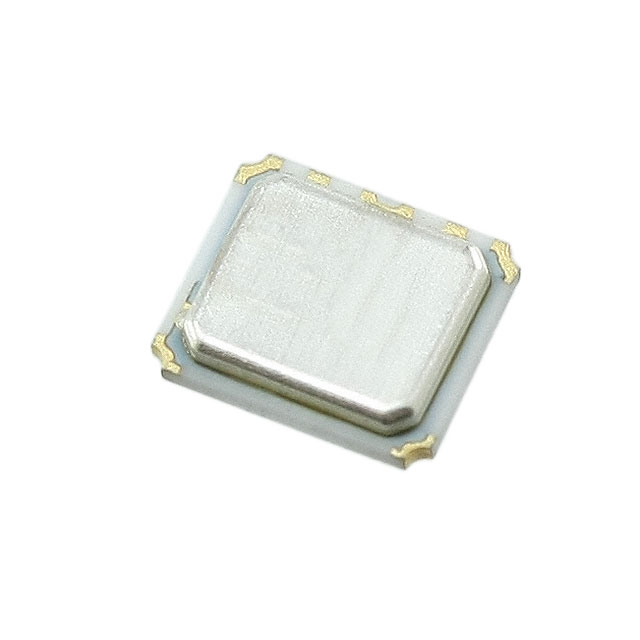

The SFSCE10M7WF04-R0 is a ceramic filter manufactured by Murata Electronics, designed for signal conditioning applications. It operates at a center frequency of 10.7 MHz with a bandwidth of 400 kHz and an impedance of 470 Ohms. The component features a surface-mount package in the 1715 (4538 Metric) dimension, measuring 4.50mm x 3.80mm x 1.00mm maximum height. It utilizes a four-pad board mount configuration and is supplied in tape and reel packaging. The device is classified as obsolete.

Feature Summary

• Utilizes ceramic construction for intermediate frequency filtering
• Designed for FM signal processing applications
• Surface-mount topology for automated assembly

Applications

• FM radio receiver circuits
• Intermediate frequency filtering in communication devices
• Signal conditioning in consumer electronics

Procurement Notes

This component is officially designated as obsolete and no longer manufactured by Murata Electronics. Procurement sources may only offer existing stock or secondary market inventory. Verify authenticity and physical condition carefully when sourcing from non-authorized distributors. Ensure compatibility with legacy designs before acquisition, as replacement availability is not guaranteed through standard supply channels.

Selection Notes

Engineers should prioritize alternative components due to the discontinued status of this part. Evaluate current design requirements against available active series from Murata or other manufacturers. Consider footprint compatibility and electrical parameter matching during substitution analysis. Legacy projects requiring this specific specification must address long-term supply chain risks associated with end-of-life products.

Part Context

The SFSCE10M7WF04-R0 belongs to the SFSCE series of ceramic filters produced by Murata Electronics. This series targets intermediate frequency applications in audio and communication systems. The specific model provides standardized filtering characteristics for 10.7 MHz FM bands. Its compact surface-mount form factor supports high-volume manufacturing processes typical in consumer electronic assemblies.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users must consult official Murata catalogs for active series replacements or perform independent cross-reference analysis based on electrical specifications.
