Product Detailed Parameters
- Description：CER FILTER 5.5MHZ DISCRIMINATOR
- Series：CERAFIL®, SFSKA
- Mfr：Murata Electronics
- Package：Tape & Reel (TR)
- Frequency：5.5MHz Center
- Impedance：600Ohm
- Bandwidth：60 kHz
- Insertion Loss：6dB
- Filter Type：Discriminator
- Mounting Type：Surface Mount
- Package / Case：6-SMD, No Lead
- Size / Dimension：0.335" L x 0.150" W (8.50mm x 3.80mm)
- Height (Max)：0.079" (2.00mm)
Download product information
Overview

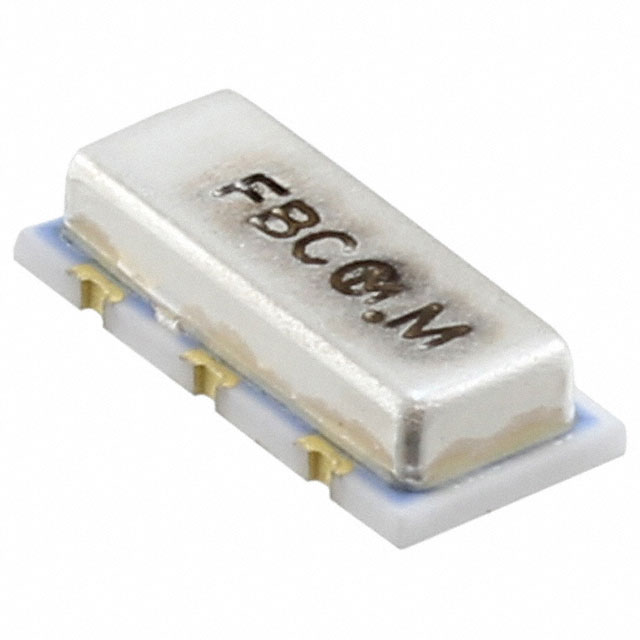

The SFSKA5M50CF00-R3 is a ceramic filter manufactured by Murata Electronics, designed for signal conditioning applications. It operates at a center frequency of 5.5 MHz with a nominal impedance of 600 Ohms. The component features a bandwidth of 60 kHz and utilizes a chip-style construction suitable for board mounting. This device belongs to the SF series and is identified under the CERAFIL trademark. It is packaged in tape and reel format for automated assembly processes.
Feature Summary
- High attenuation characteristics outside the specified bandwidth
- Compact chip-style construction for space-constrained designs
- Sealed alumina bag packaging for environmental protection
Applications
- Signal conditioning circuits
- Frequency selection in communication systems
- Noise filtering in electronic devices
Procurement Notes
Verify part status as this component may be obsolete or discontinued. Confirm availability through authorized distributors or direct manufacturer channels. Check for end-of-life notices or withdrawal notifications prior to procurement. Ensure compatibility with existing supply chain requirements if replacement sourcing is necessary.
Selection Notes
Select this component for applications requiring precise 5.5 MHz filtering with 600 Ohm impedance. Consider the 60 kHz bandwidth for narrowband signal processing needs. Evaluate the chip form factor against PCB layout constraints. Verify operating temperature ranges and power handling capabilities against system specifications.
Part Context
This component is part of Murata's CERAFIL line of ceramic filters, specifically within the SF series. These filters are engineered for high performance in compact electronic devices. The product line emphasizes reliability and consistent electrical characteristics for industrial and commercial applications.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult Murata Electronics for current alternative recommendations or updated product lines that meet similar technical specifications.
