Product Detailed Parameters
- Description：CAP FEEDTHRU 0.033UF 50V AXIAL
- Series：SFSTC
- Mfr：Knowles Syfer
- Package：Bulk
- Voltage - Rated：50V
- Current：10:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial
- Size / Dimension：0.157" Dia x 0.110" L (4.00mm x 2.80mm)
- Capacitance：0.033 µF
- Tolerance：±20%
- DC Resistance (DCR) (Max)：-
- Insertion Loss：-
- Temperature Coefficient：X7R
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

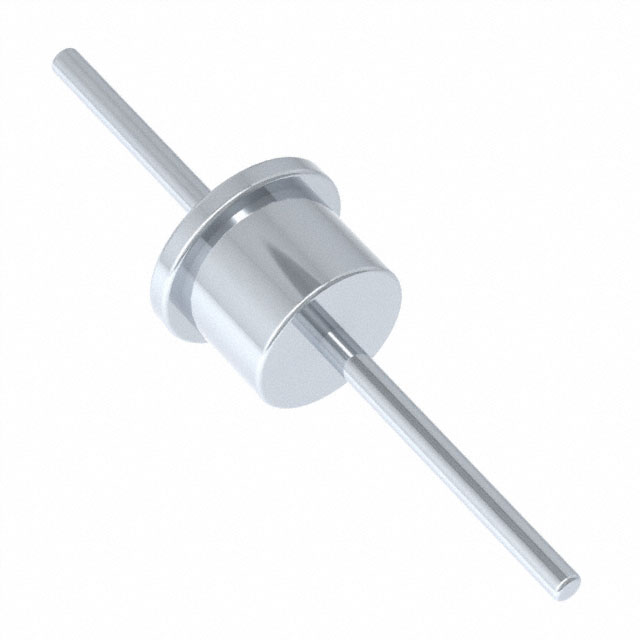

The Knowles Syfer SFSTC0500333MX0 is an axial feedthrough capacitor designed for electromagnetic interference (EMI) filtering. It features a capacitance of 0.033 uF with a voltage rating of 50 VDC. The component utilizes C0G dielectric material and offers a tolerance of +/-20%. It operates within a temperature range of -55°C to +125°C. The physical dimensions include a length of 11.5 mm, a diameter of 6.35 mm, and lead wire diameters of 0.7 mm. This device belongs to the SFSTC series and is classified as an EMI Feedthrough Filter.
Feature Summary
- Provides effective electromagnetic interference suppression through feedthrough architecture
- Utilizes stable C0G dielectric material for consistent performance across temperature variations
- Features axial leads for secure mounting in panel or chassis applications
Applications
- Electromagnetic interference filtering in electronic enclosures
- Power supply input/output conditioning
- Signal line protection in sensitive instrumentation
Procurement Notes
Verify the specific suffix MX0 against the official datasheet to confirm terminal plating and sealing specifications. Ensure the 50VDC rating aligns with circuit requirements. Confirm compliance with RoHS directives if mandated by project standards. Cross-reference the axial lead dimensions with mechanical constraints before integration.
Selection Notes
Select this component when low-profile axial filtering is required for 50V circuits. The C0G dielectric ensures minimal capacitance drift under varying conditions. Compare the 0.033uF value against alternative series like SFSWR or SFCML if higher voltage ratings or different termination styles are needed. Validate thermal limits against the operational environment.
Part Context
This part belongs to the Knowles Syfer SFSTC series of feedthrough capacitors. These components are engineered for high-reliability EMI suppression in compact spaces. The series typically includes various capacitance values and voltage ratings, sharing common design principles for robust filtering in industrial and commercial electronics.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's selection guide for equivalent capacitance and voltage ratings within the same series.
