SFT722N-S

LED Indication - Discrete Overview

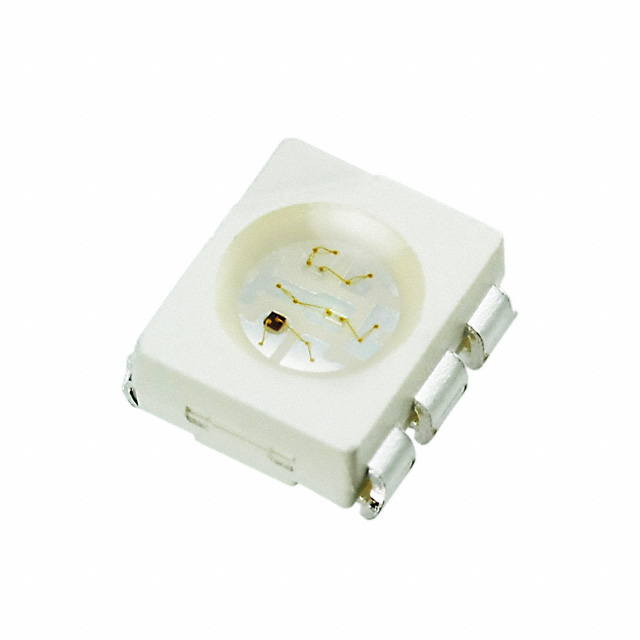

The SFT722N-S is a triple color LED component manufactured by Seoul Semiconductor. It integrates red, green, and blue light-emitting elements within a single surface-mount package. The device utilizes specific wavelengths of 623 nm for red, 527 nm for green, and 460 nm for blue to produce full-color output. Electrical characteristics include a forward voltage range of 2.1 V to 3.2 V and a standard forward current rating of 20 mA. Luminous intensity varies between 200 cd and 1600 cd depending on the specific color channel. The unit is housed in a PLCC-style package with a molded plastic reflector substrate.

LED Indication - Discrete Feature Summary

• Integrates red, green, and blue emitters into a single surface-mount device
• Utilizes a molded plastic reflector substrate for optical efficiency
• Supports full-color mixing capabilities through independent channel control

LED Indication - Discrete Applications

• Indicating lighting systems requiring multi-color status display
• Decorative lighting applications utilizing RGB color mixing
• Display backlighting components for visual indicators

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized distributors as this part number may be obsolete or discontinued. Confirm exact binning specifications for luminous intensity and wavelength matching prior to integration. Check for available replacement equivalents from the manufacturer if new production units are unavailable. Ensure storage conditions comply with moisture sensitivity levels for surface-mount devices.

LED Indication - Discrete Selection Notes

Select this component when a compact RGB solution is required for space-constrained designs. Consider the wide luminous intensity range for varying brightness requirements. Evaluate thermal management needs based on the combined power dissipation of all three channels. Verify compatibility with existing PCB footprints designed for PLCC-style packages.

LED Indication - Discrete Part Context

This component belongs to Seoul Semiconductor's discrete LED indication product line. The manufacturer specializes in high-brightness LED technologies for automotive, display, and general lighting sectors. The SFT722N-S represents an earlier generation of integrated RGB solutions compared to modern pixel-based architectures.

LED Indication - Discrete Replacement Considerations

Public records indicate this product is no longer manufactured. Seek direct substitutes from Seoul Semiconductor or verify compatible RGB LEDs from other manufacturers with identical pin configurations and electrical ratings.
