SFT825Z-S

LED Indication - Discrete Overview

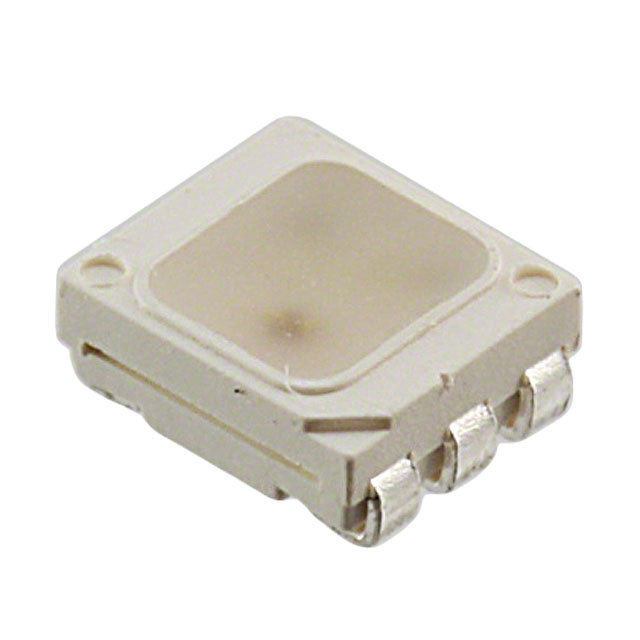

The SFT825Z-S is a surface-mount LED from Seoul Semiconductor, housed in a PLCC standard package. It features a substrate with a molded plastic reflector on a bent lead frame, encapsulated by hard silicone resin for high reliability. The component supports Pb-free reflow soldering and complies with RoHS standards. Designed for automotive interior and indoor ESS applications, it offers an ESD withstand voltage of up to 6 kV (MIL-STD-883D) and operates within a temperature range of -40℃ to 100℃.

LED Indication - Discrete Feature Summary

• Encapsulated with hard silicone resin for enhanced reliability across extended temperature ranges
• Supports Pb-free reflow soldering processes and meets RoHS compliance requirements
• Features a molded plastic reflector substrate integrated into a bent lead frame design

LED Indication - Discrete Applications

• Automotive interior lighting systems
• Indoor Energy Storage Systems (ESS)
• LCD backlights
• RGB displays
• Signage and channel letters

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffixes against official Seoul Semiconductor documentation to ensure correct binning and packaging specifications. Confirm that the selected variant matches the required application environment, particularly regarding the -40℃ to 100℃ operating range. Ensure procurement channels provide genuine components with valid datasheets to guarantee compliance with RoHS and Pb-free reflow soldering standards.

LED Indication - Discrete Selection Notes

Select this component when a robust surface-mount LED solution is required for environments demanding high reliability and thermal stability. The use of hard silicone resin makes it suitable for applications where long-term performance under varying temperatures is critical. Consider its compatibility with standard SMT assembly methods and its ability to withstand significant electrostatic discharge events during handling and operation.

LED Indication - Discrete Part Context

This part belongs to the SFT series of surface-mount LEDs manufactured by Seoul Semiconductor. These devices are engineered for diverse display and lighting applications, utilizing advanced packaging techniques to ensure durability. The SFT825Z-S specifically addresses the need for reliable illumination in automotive and industrial settings through its specialized encapsulation and structural design.

LED Indication - Discrete Replacement Considerations

Consult official Seoul Semiconductor substitution guides for verified alternatives. Cross-reference technical parameters such as package dimensions and electrical characteristics before implementing any substitute components.
