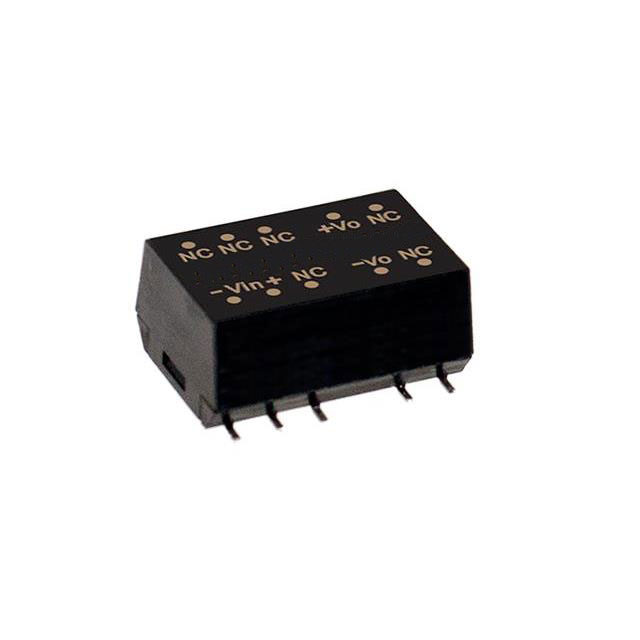

SFTN01N-12N

SFTN01N-12N is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MEAN WELL USA Inc.. Its product description is DC DC CONVERTER 12V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SFTN01N-12N

• Description：DC DC CONVERTER 12V 1W
• Series：SFTN01-N (1W)
• Mfr：MEAN WELL USA Inc.
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：84mA
• Power (Watts)：1 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 100°C
• Efficiency：80%
• Mounting Type：Surface Mount
• Package / Case：12-SMD Module, 10 Leads
• Size / Dimension：0.60" L x 0.43" W x 0.28" H (15.2mm x 10.9mm x 7.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, EAC, UKCA
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for SFTN01N-12N
