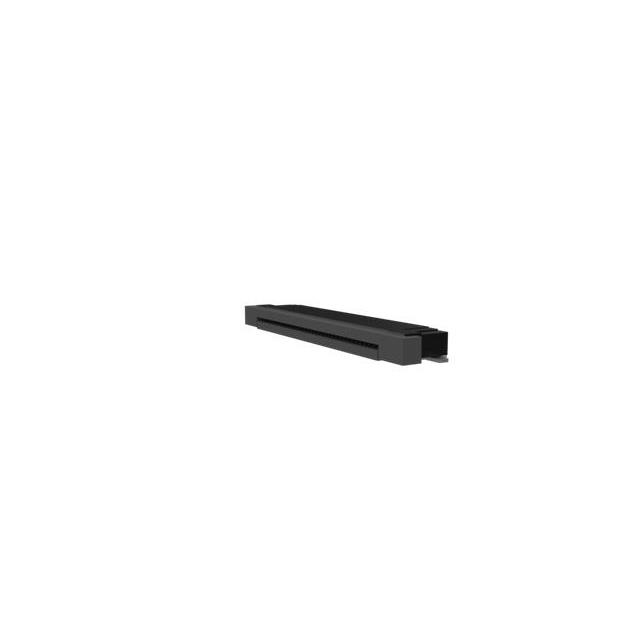

SFV21R-4STBE1HLF

SFV21R-4STBE1HLF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FPC TOP 21POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFV21R-4STBE1HLF

• Description：CONN FPC TOP 21POS 0.5MM R/A
• Series：SFV-R
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top
• Number of Positions：21
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.071" (1.80mm)
• Locking Feature：Slide Lock
• Cable End Type：Notched or Tabbed
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
• Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：UL94 V-0
