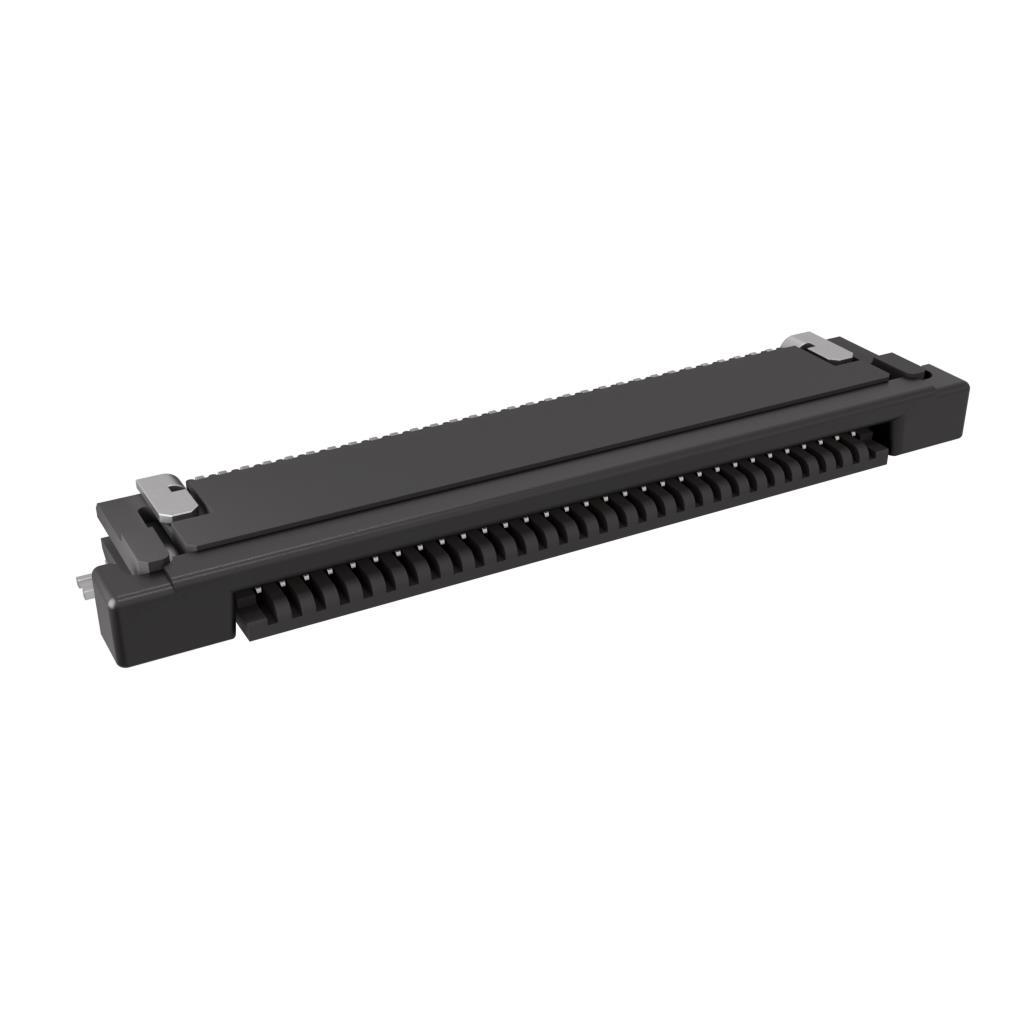

SFV31R-1STBE1HLF

SFV31R-1STBE1HLF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC BOTTOM 31POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFV31R-1STBE1HLF

• Description：CONN FFC BOTTOM 31POS 0.5MM R/A
• Series：SFV-R
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：31
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：-
• Height Above Board：0.071" (1.80mm)
• Locking Feature：-
• Cable End Type：Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
• Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
• Features：-
• Voltage Rating：50V
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFV31R-1STBE1HLF
