SFVLF10M7LF00-B0

Overview

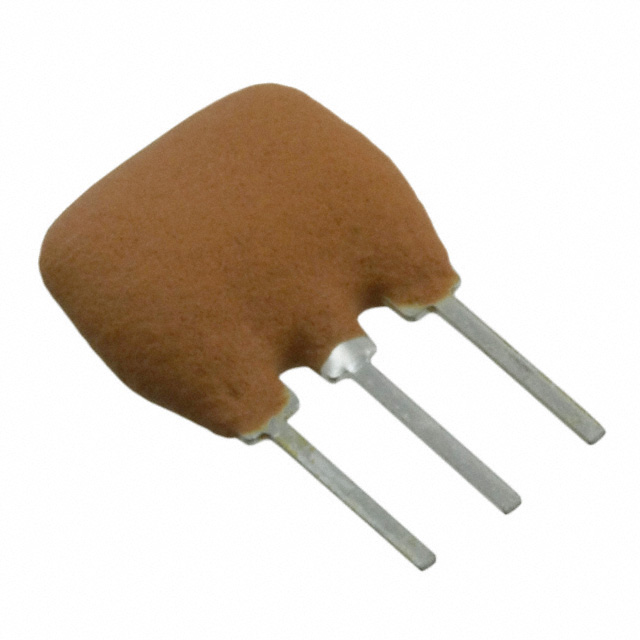

The Murata Electronics SFVLF10M7LF00-B0 is a two-element ceramic filter designed for signal conditioning applications. It operates at a center frequency of 10.7 MHz with a bandwidth of 25 kHz and an impedance of 330 Ohms. The component utilizes a radial leaded (SIP-3) package with a 2.50 mm pitch, suitable for board mounting. This device belongs to the CERAFIL series and is engineered for precise filtering in audio and visual equipment.

Feature Summary

• Provides precise signal filtering at the standard FM intermediate frequency
• Utilizes a compact two-element ceramic resonator design
• Features a radial leaded package for through-hole board mounting

Applications

• FM radio receiver circuits
• Intermediate frequency filtering in audio equipment
• Signal conditioning in video processing systems

Procurement Notes

Verify the specific suffix and package dimensions against the official Murata datasheet to ensure compatibility with your PCB footprint. Confirm that the 330 Ohm impedance and 25 kHz bandwidth meet your circuit requirements. Check for any RoHS or REACH compliance documentation relevant to your manufacturing region before finalizing procurement.

Selection Notes

Select this component when a narrow 25 kHz bandwidth is required for FM demodulation. Ensure the circuit design supports the 330 Ohm impedance level. Consider the physical size constraints of the SIP-3 package during layout planning. Verify that the operating temperature range meets the environmental conditions of the target application.

Part Context

This part is part of Murata's CERAFIL line, which specializes in ceramic filters for consumer electronics. The SFVLF series specifically targets FM broadcast band applications. These components are widely used in portable radios and home audio systems due to their stability and small form factor compared to LC filters.

Replacement Considerations

Consult the official Murata replacement guide for direct substitutes. Generic equivalents may differ in bandwidth or impedance characteristics. Verify pinout compatibility if replacing with similar SIP-3 packages from other manufacturers.
