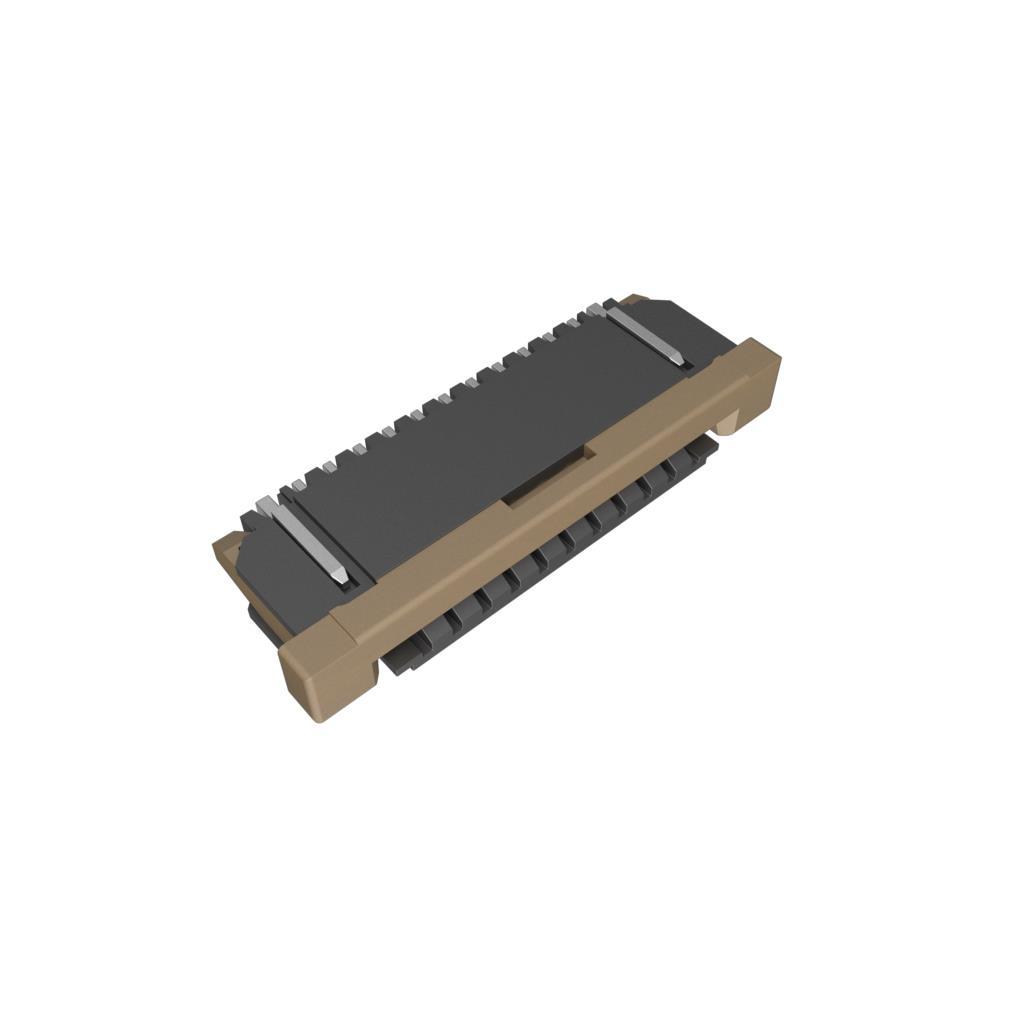

FFC, FPC (Flat Flexible) Connector Assemblies SFW11R-3STE1LF product image

SFW11R-3STE1LF

$0.23

Description：CONN FFC FPC BOTTOM 11POS 1MM RA
Series：SFW-R
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Tape & Reel (TR)

SKU:71c6077bf4d1 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SFW11R-3STE1LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC BOTTOM 11POS 1MM RA. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW11R-3STE1LF

Description：CONN FFC FPC BOTTOM 11POS 1MM RA
Series：SFW-R
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Tape & Reel (TR)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：11
Pitch：0.039" (1.00mm)
Termination：Kinked Pin
FFC, FCB Thickness：0.30mm, 0.33mm
Height Above Board：0.106" (2.70mm)
Locking Feature：Slide Lock
Cable End Type：Straight, Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Zero Insertion Force (ZIF)
Voltage Rating：100V
Operating Temperature：-55°C ~ 105°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFW11R-3STE1LF

SFW11R-3STE1LF
