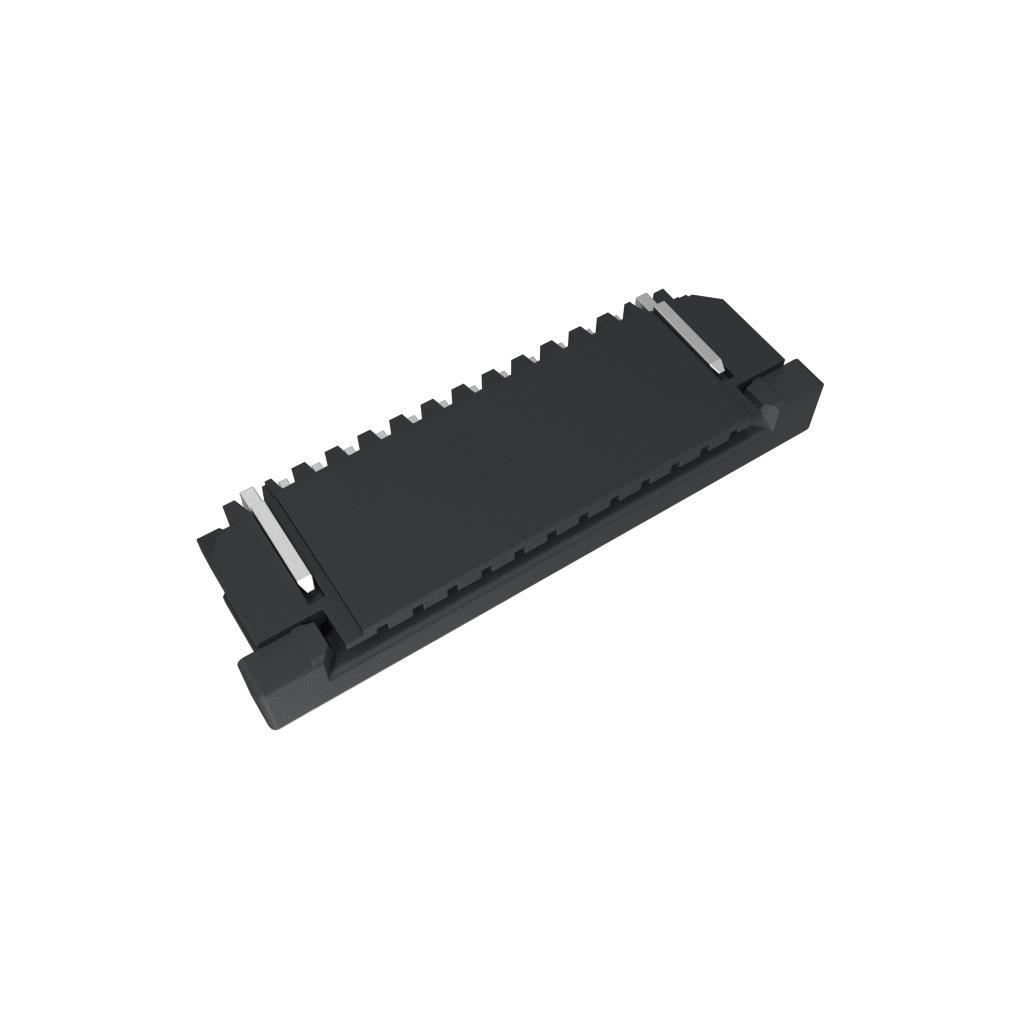

FFC, FPC (Flat Flexible) Connector Assemblies SFW12R-6STE1LF product image

SFW12R-6STE1LF

$0.46

Description：CONN CIC TOP 12POS 1MM R/A
Series：SFW-R
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:cf6dcb80a07b Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SFW12R-6STE1LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN CIC TOP 12POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW12R-6STE1LF

Description：CONN CIC TOP 12POS 1MM R/A
Series：SFW-R
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：CIC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top
Number of Positions：12
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.106" (2.70mm)
Locking Feature：-
Cable End Type：Straight
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：100V
Operating Temperature：-55°C ~ 105°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFW12R-6STE1LF

SFW12R-6STE1LF
