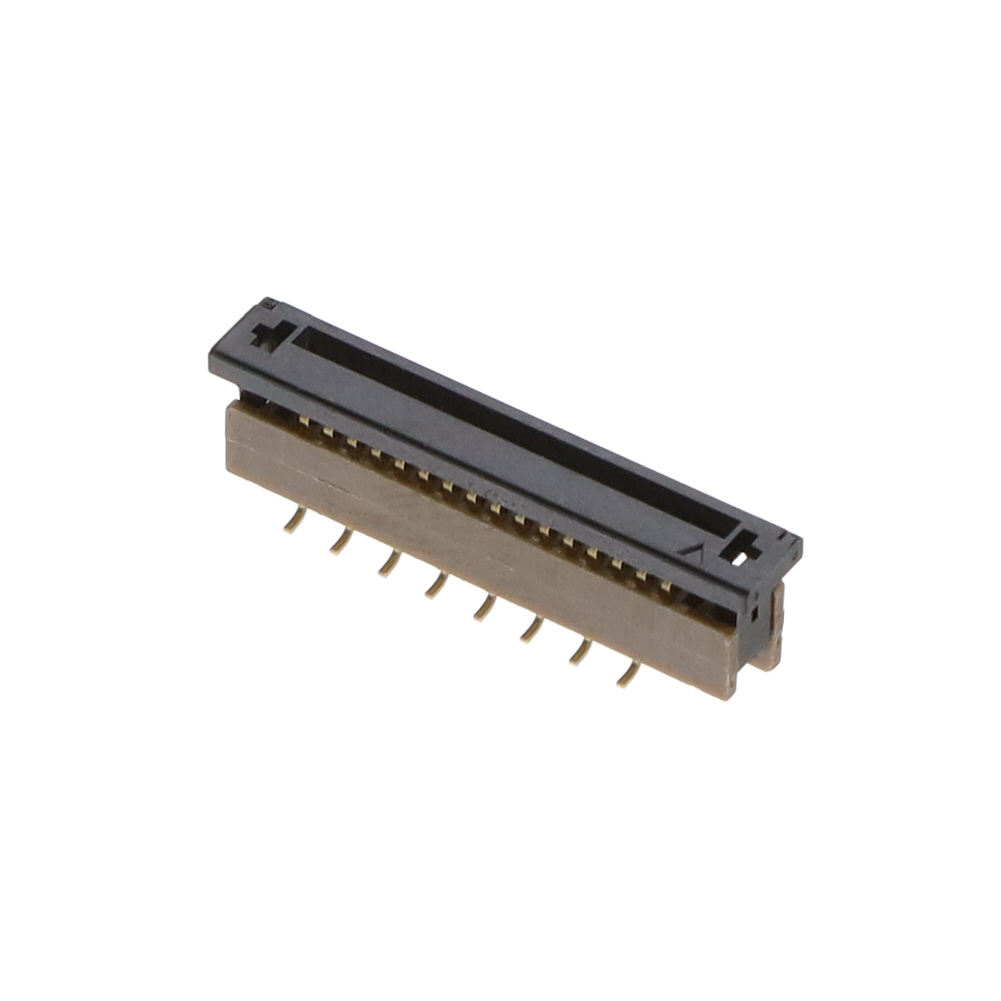

FFC, FPC (Flat Flexible) Connector Assemblies SFW16S-2STAE1LF product image

SFW16S-2STAE1LF

$0.63

Description：CONN FPC VERT 16POS 1MM SMD
Series：SFW
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d45116f07cca Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SFW16S-2STAE1LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FPC VERT 16POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW16S-2STAE1LF

Description：CONN FPC VERT 16POS 1MM SMD
Series：SFW
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FPC
Mounting Type：Surface Mount
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：16
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.33mm
Height Above Board：0.209" (5.30mm)
Locking Feature：-
Cable End Type：-
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Thermoplastic, Glass Filled
Actuator Material：Thermoplastic, Glass Filled
Features：Zero Insertion Force (ZIF)
Voltage Rating：100V
Operating Temperature：-55°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFW16S-2STAE1LF

SFW16S-2STAE1LF
