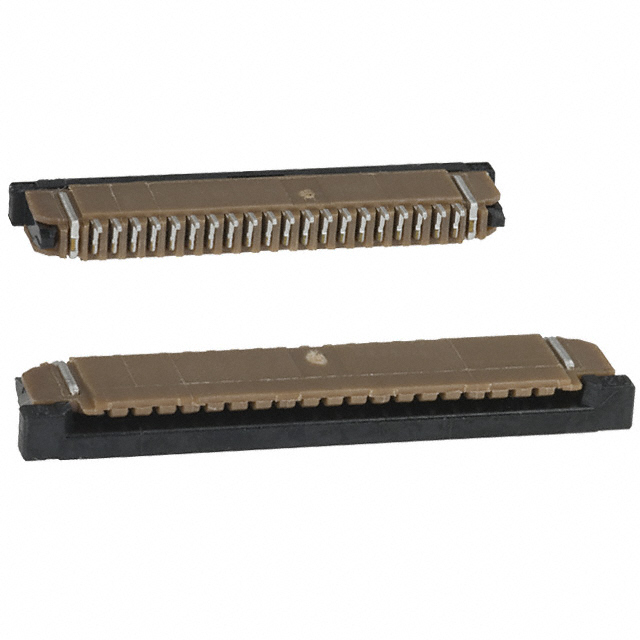

FFC, FPC (Flat Flexible) Connector Assemblies SFW20R-2STE1 product image

SFW20R-2STE1

Description：CONN FFC FPC TOP 20POS 1MM R/A
Series：SFW-R
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:c2595c55a824 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SFW20R-2STE1 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC TOP 20POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW20R-2STE1

Description：CONN FFC FPC TOP 20POS 1MM R/A
Series：SFW-R
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top
Number of Positions：20
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm, 0.33mm
Height Above Board：0.106" (2.70mm)
Locking Feature：Slide Lock
Cable End Type：Straight, Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin Alloy
Housing Material：Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Zero Insertion Force (ZIF)
Voltage Rating：-
Operating Temperature：-
Material Flammability Rating：UL94 V-0
