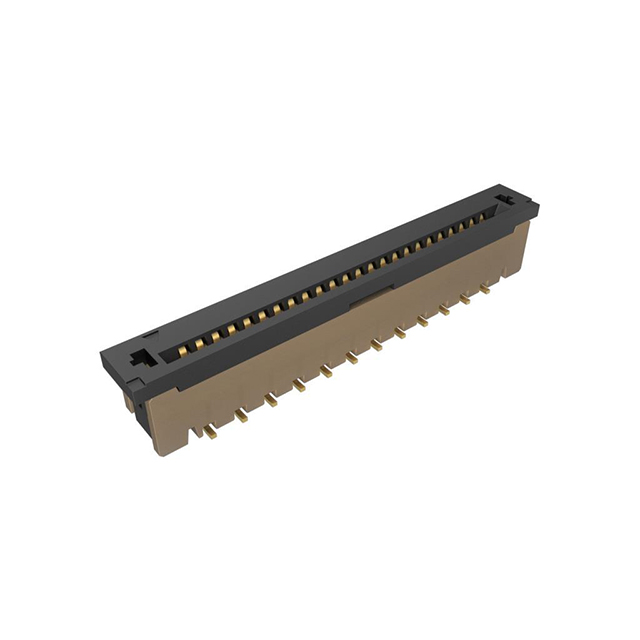

FFC, FPC (Flat Flexible) Connector Assemblies SFW24S-2STAE1LF product image

SFW24S-2STAE1LF

Description：CONN FPC VERT 24POS 1MM SMD
Series：SFW
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:8d98bd22c7dc Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SFW24S-2STAE1LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FPC VERT 24POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW24S-2STAE1LF

Description：CONN FPC VERT 24POS 1MM SMD
Series：SFW
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Flat Flex Type：FPC
Mounting Type：Surface Mount
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：24
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.209" (5.30mm)
Locking Feature：Slide Lock
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Thermoplastic, Glass Filled
Actuator Material：Thermoplastic, Glass Filled
Features：Zero Insertion Force (ZIF)
Voltage Rating：100V
Operating Temperature：-55°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFW24S-2STAE1LF

SFW24S-2STAE1LF
