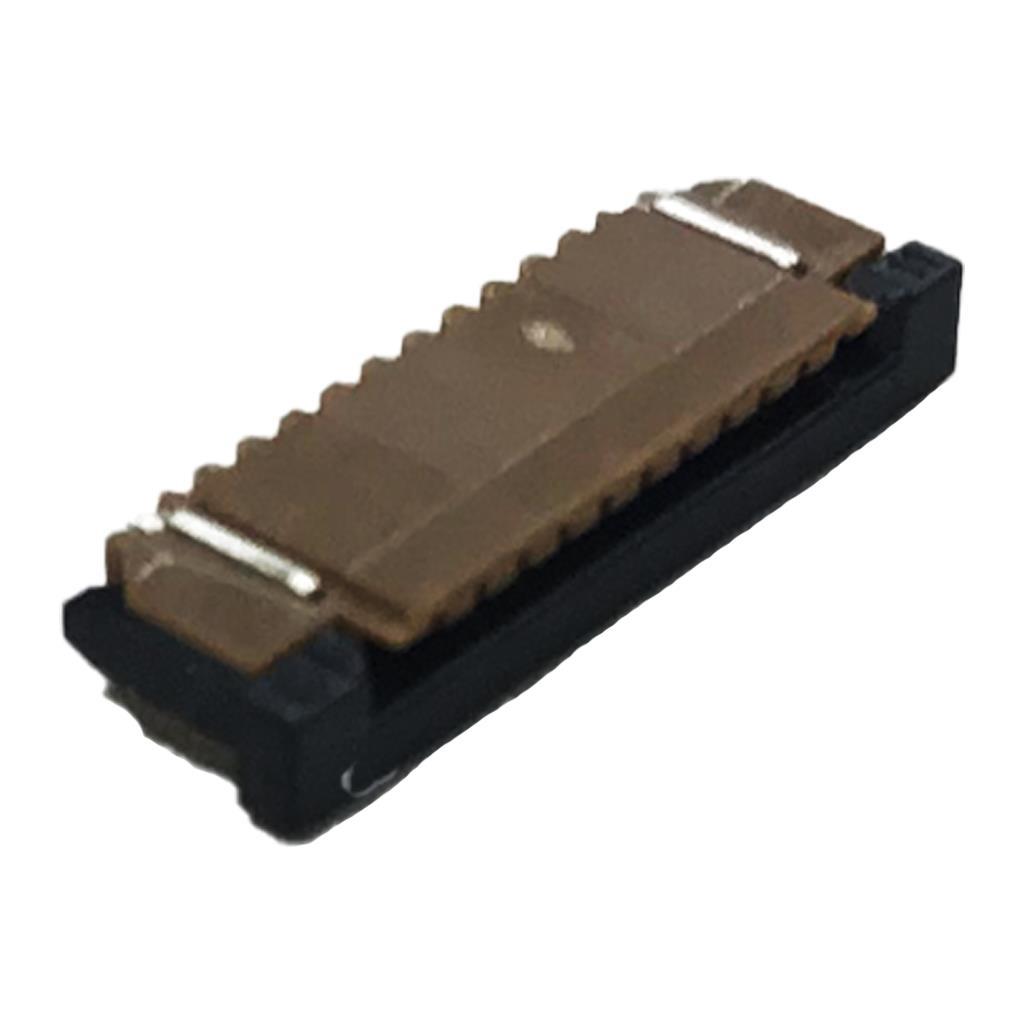

FFC, FPC (Flat Flexible) Connector Assemblies SFW5R-4STE5LF product image

SFW5R-4STE5LF

Description：CONN FFC FPC TOP 5POS 1MM R/A
Series：SFW-R
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:940916199623 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SFW5R-4STE5LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC TOP 5POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW5R-4STE5LF

Description：CONN FFC FPC TOP 5POS 1MM R/A
Series：SFW-R
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top
Number of Positions：5
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm, 0.33mm
Height Above Board：0.106" (2.70mm)
Locking Feature：Slide Lock
Cable End Type：Notched
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Zero Insertion Force (ZIF)
Voltage Rating：100V
Operating Temperature：-55°C ~ 105°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFW5R-4STE5LF

SFW5R-4STE5LF
