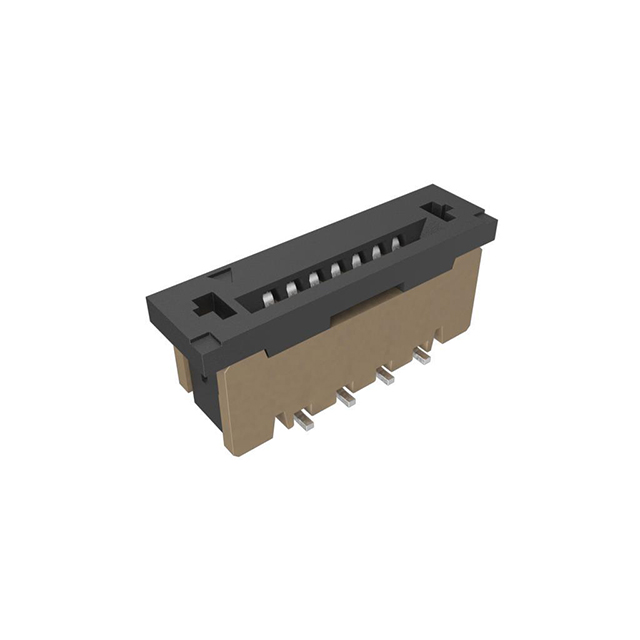

FFC, FPC (Flat Flexible) Connector Assemblies SFW7S-2STE1LF product image

SFW7S-2STE1LF

$0.28

Description：CONN FFC FPC VERT 7POS 1MM SMD
Series：SFW
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:77b501cd6606 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SFW7S-2STE1LF is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC VERT 7POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for SFW7S-2STE1LF

Description：CONN FFC FPC VERT 7POS 1MM SMD
Series：SFW
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：7
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm, 0.33mm
Height Above Board：0.209" (5.30mm)
Locking Feature：Slide Lock
Cable End Type：Straight, Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Thermoplastic, Glass Filled
Actuator Material：Thermoplastic, Glass Filled
Features：Zero Insertion Force (ZIF)
Voltage Rating：100V
Operating Temperature：-55°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for SFW7S-2STE1LF

SFW7S-2STE1LF
