SFWR28-0333

Overview

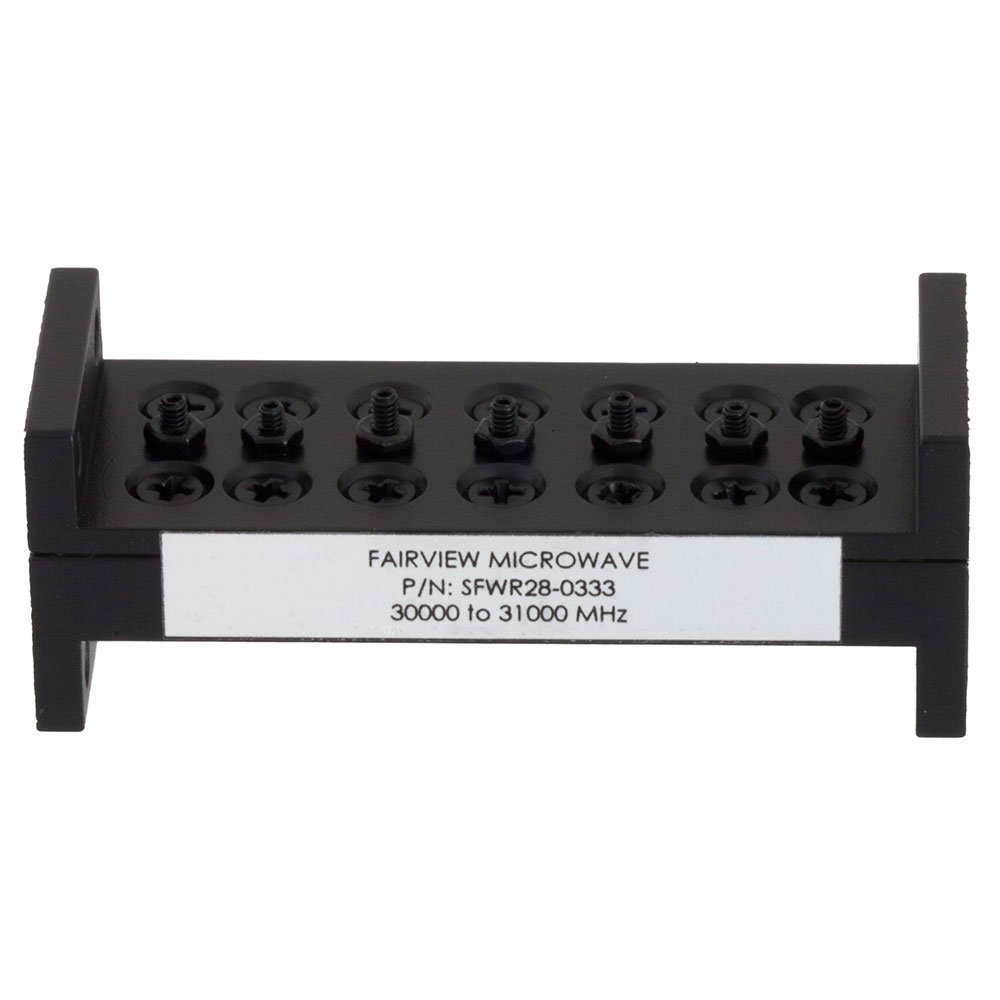

The SFWR28-0333 is a waveguide bandpass filter manufactured by Fairview Microwave, designed for operation within the 30 GHz to 31 GHz frequency range. This component provides an insertion loss of 1.5 dB and achieves a rejection level of 60 dB. It serves as a signal conditioning element within RF systems requiring precise frequency selection in the Ka-band spectrum.

Feature Summary

• Provides bandpass filtering characteristics for specific frequency selection
• Designed for waveguide integration within RF signal chains

Applications

• Ka-band communication systems
• RF signal conditioning applications
• Frequency selective filtering setups

Procurement Notes

Verify technical specifications against official Fairview Microwave datasheets prior to procurement. Confirm that the operating frequency range of 30 GHz to 31 GHz aligns with system requirements. Ensure compatibility with existing waveguide interfaces and mechanical constraints. Validate performance metrics including insertion loss and rejection levels for intended application suitability.

Selection Notes

Select this component when a narrow bandpass filter is required specifically between 30 GHz and 31 GHz. Consider the 1.5 dB insertion loss and 60 dB rejection capabilities relative to system noise and isolation needs. Evaluate waveguide form factor compatibility with current infrastructure before finalizing the design choice.

Part Context

This part belongs to Fairview Microwave's waveguide filter product line, categorized under signal conditioning components. It supports high-frequency operations typical of modern microwave and millimeter-wave applications, providing essential spectral purity and interference rejection capabilities.
