SG-51PH 46.0000MC

Oscillators Overview

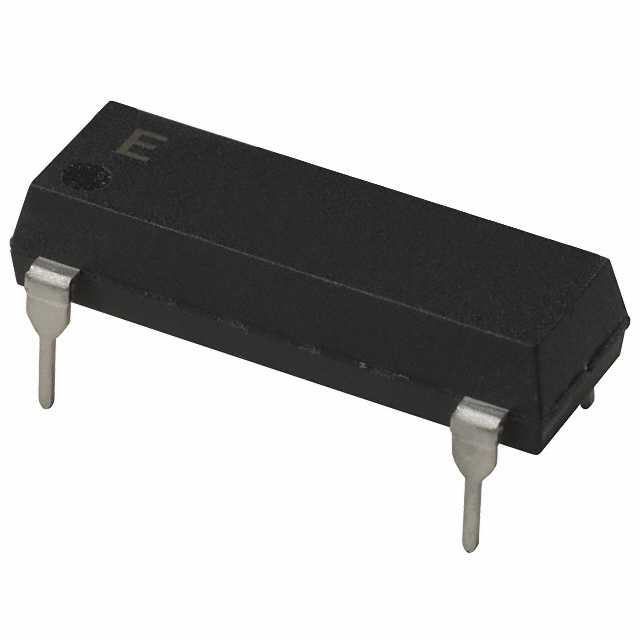

The SG-51PH 46.0000MC is a standard crystal oscillator manufactured by Epson, operating at a fixed frequency of 46 MHz. It utilizes a CMOS output type and features an enable/disable function controlled via a 5V supply. The component is housed in a 14-DIP package with four leads, classified as full size through-hole technology. This device serves as a precise clock source for digital circuits requiring stable timing signals.

Oscillators Feature Summary

• Provides a stable 46 MHz clock signal using CMOS output logic
• Includes hardware enable and disable functionality for power management
• Utilizes a full-size 14-DIP through-hole package for robust mounting

Oscillators Applications

• Digital system clock generation
• Microcontroller timing sources
• Communication interface synchronization

Oscillators Procurement Notes

Verify the specific suffix '46.0000MC' to ensure the correct 46 MHz frequency variant. Confirm that the 14-DIP package matches your PCB footprint requirements. Check for RoHS compliance status if environmental regulations apply to your assembly process. Ensure the enable pin configuration aligns with your control logic voltage levels.

Oscillators Selection Notes

Select this component when a dedicated 46 MHz clock source is required rather than a generic frequency. The CMOS output is suitable for standard logic families. Consider the physical size constraints of the 14-DIP package during layout planning. Verify that the enable feature meets your power cycling needs compared to always-on oscillators.

Oscillators Part Context

This part belongs to the SG-51PH series of crystal oscillators from Epson. The series typically offers various frequencies and packages. The SG-51PH specifically denotes a standard XO with enable capabilities. Other variants in the series may differ in frequency, package size, or output type while maintaining similar operational principles.

Oscillators Replacement Considerations

Direct substitutes must match the 46 MHz frequency, CMOS output, and 14-DIP package. Verify pin compatibility and electrical specifications before substitution. Generic replacements may lack the specific enable functionality or stability characteristics of the original Epson component.
