SG-531P 14.7456MC

Oscillators Overview

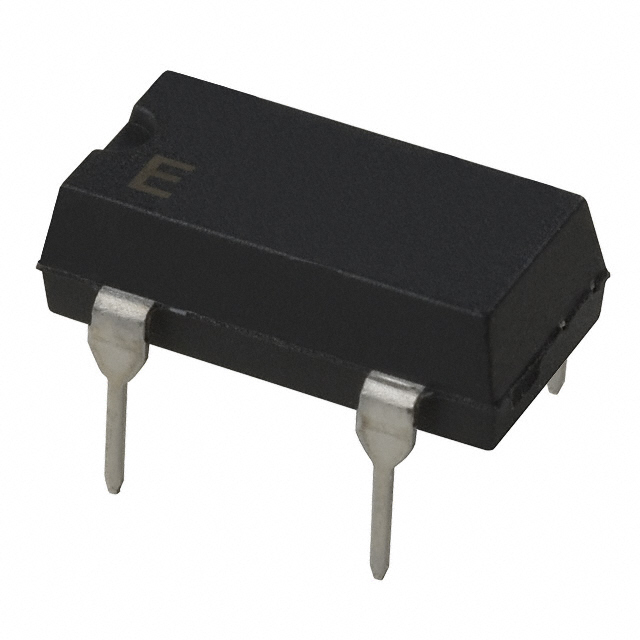

The SG-531P 14.7456MC is a CMOS/TTL compatible crystal oscillator manufactured by Epson, operating at a nominal frequency of 14.7456 MHz. It features an enable/disable control function and is housed in an 8-DIP package with four leads, representing half the size of standard DIP packages. The device supports a supply voltage range typically associated with 5V logic families, ensuring compatibility with standard digital circuits. This component provides stable clock signals for timing applications requiring precise frequency generation.

Oscillators Feature Summary

• Integrated enable and disable functionality for power management
• CMOS and TTL output compatibility for broad interface support
• Compact half-size DIP packaging for space-constrained designs

Oscillators Applications

• Digital communication systems requiring precise clock synchronization
• Microcontroller-based embedded systems
• Test and measurement equipment timing references

Oscillators Procurement Notes

Verify the specific suffix requirements against your design specifications to ensure correct output levels and packaging. Confirm RoHS compliance status if environmental regulations apply to your manufacturing process. Check current availability as this product may be subject to discontinuation or tariff implications depending on the shipping destination. Ensure the enable pin configuration matches your system's power sequencing requirements.

Oscillators Selection Notes

Select this component when a compact, half-size DIP oscillator is required for 14.7456 MHz applications. Consider the enable/disable feature if dynamic power control is necessary for the system. Verify that the CMOS/TTL output levels align with the input voltage thresholds of the receiving logic devices. Evaluate the physical footprint constraints to confirm the 8-DIP half-size package fits within the PCB layout limitations.

Oscillators Part Context

This part belongs to Epson's SG-531 series of crystal oscillators, which are designed for general-purpose timing applications. The series offers various frequency options and packaging styles to accommodate different design needs. The SG-531P variant specifically targets applications requiring a balance between performance, size, and cost-effectiveness in standard DIP form factors.

Oscillators Replacement Considerations

Check for direct substitutes from Epson's SG-531 family with identical frequency and package dimensions. Verify electrical compatibility regarding output voltage levels and enable logic polarity before replacing.
