SG-8002CA 52.0000M-PCBL0

Oscillators Overview

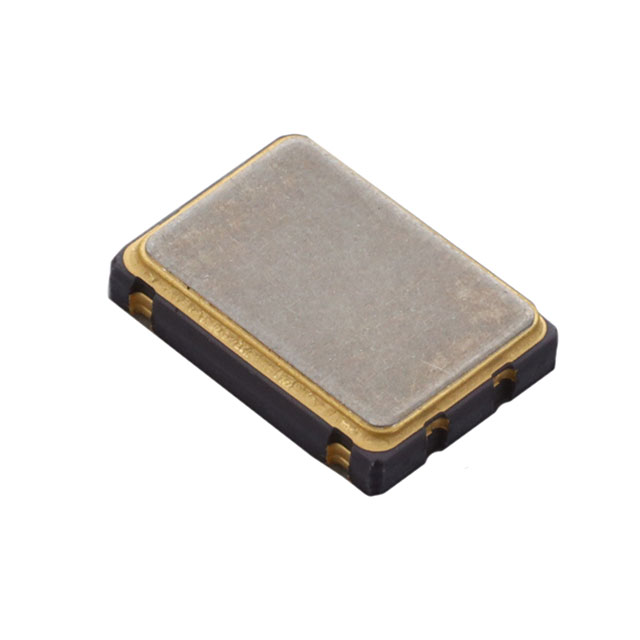

The SG-8002CA 52.0000M-PCBL0 is a standard CMOS oscillator from Epson, operating at a nominal frequency of 52.0000 MHz. It functions within a supply voltage range of 2.7V to 3.6V, with a maximum supply current of 28mA. The device exhibits a frequency stability of ±50ppm and operates across a temperature range of -20°C to 70°C. Packaged in a 4-SMD, no-lead surface-mount format, it features an enable/disable control function for power management.

Oscillators Feature Summary

• CMOS output signal generation
• Enable or disable control functionality
• Surface-mount package design

Oscillators Applications

• General clock timing circuits
• Embedded system synchronization
• Digital communication interfaces

Oscillators Procurement Notes

Verify the specific suffix codes against official Epson documentation to ensure correct frequency, tolerance, and package specifications. Confirm that the enable/disable pin configuration matches the target circuit design requirements before procurement.

Oscillators Selection Notes

Select this component when a precise 52MHz CMOS clock source is required with low power consumption capabilities. Ensure the operating environment stays within the specified -20°C to 70°C temperature range and that the 2.7V to 3.6V supply voltage aligns with the system architecture.

Oscillators Part Context

This part belongs to the SG-8002 series of standard oscillators manufactured by Epson. The series utilizes PLL technology for frequency generation, offering various frequency options between 1 MHz and 125 MHz. The SG-8002CA variant specifically provides CMOS outputs with enable controls for flexible integration into digital systems.

Oscillators Replacement Considerations

Direct substitutes include other SG-8002CA variants with matching 52MHz frequencies and compatible suffixes such as SG-8002CA 52.0000M-PCBL3, provided the package and electrical characteristics remain identical.
