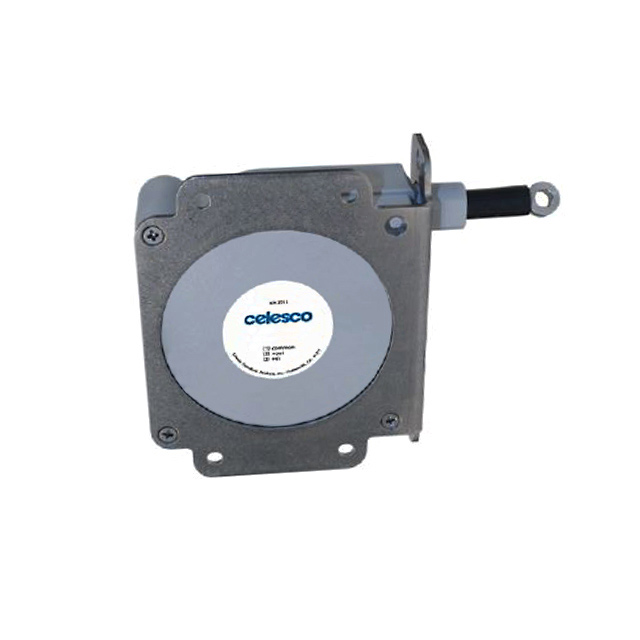

SG1-80-2

SG1-80-2 is listed in the Angle, Linear Position Measuring range at ChipApex. The manufacturer field lists TE Connectivity Measurement Specialties. Its product description is SENSOR LINEAR 2032MM WIRE LEADS. Review the specifications below when checking this part for your BOM.

Angle, Linear Position Measuring specifications for SG1-80-2

• Description：SENSOR LINEAR 2032MM WIRE LEADS
• Series：SG1
• Mfr：TE Connectivity Measurement Specialties
• Package：Box
• For Measuring：Linear Position
• Technology：Resistive
• Rotation Angle - Electrical, Mechanical：-
• Linear Range：0 ~ 2032mm (0 ~ 80")
• Output：Analog Voltage
• Output Signal：-
• Actuator Type：String Potentiometer
• Linearity：-
• Resistance：10 kOhms
• Resistance Tolerance：±10%
• Voltage - Supply：30V
• Mounting Type：Custom
• Termination Style：Wire Leads
• Operating Temperature：-40°C ~ 70°C
• Package / Case：Box with Connector
• Supplier Device Package：-
• Grade：-
• Qualification：-

Angle, Linear Position Measuring datasheet and documents for SG1-80-2
