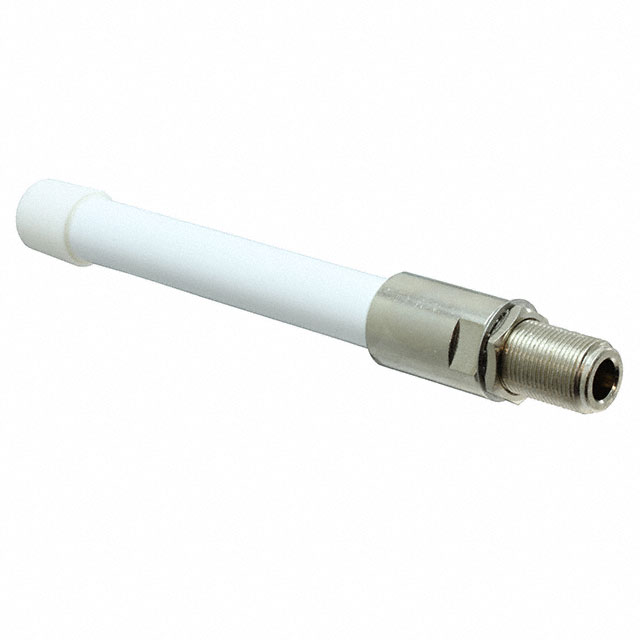

SG1013NF-2450

$35.35

Description：RF ANT 2.4GHZ WHIP STR N FEM
Series：SG1013
Mfr：Nearson Inc.
Package：Bulk

SKU:51a283351314 Category: RF Antennas Brand: Nearson Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SG1013NF-2450 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 2.4GHZ WHIP STR N FEM. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SG1013NF-2450

Description：RF ANT 2.4GHZ WHIP STR N FEM
Series：SG1013
Mfr：Nearson Inc.
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：3dBi
Features：-
Termination：N Type Female
Ingress Protection：IP65
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：-
Applications：-
Power - Max：-

Antennas RF datasheet and documents for SG1013NF-2450

SG1013NF-2450

Antennas RF Overview

The SG1013NF-2450 is a base station antenna manufactured by Nearson Inc., designed for operation within the 2.4 to 2.48 GHz frequency band. It provides a gain of 3 dBi and supports an operating temperature range suitable for standard environmental conditions. The component features an N-type female connector for termination and utilizes a connector mounting type. It is constructed with ultra-violet resistant fiberglass materials and offers IP65 ingress protection, ensuring durability against dust and water exposure in outdoor or industrial settings.

Antennas RF Feature Summary

Ultra-violet resistant fiberglass construction for enhanced durability
IP65 ingress protection rating for environmental sealing
N-type female connector interface for secure attachment

Antennas RF Applications

Base station wireless communication systems
Industrial IoT sensor networks
Public safety radio infrastructure

Antennas RF Procurement Notes

Verify that the specific part number matches the required N-type female configuration and IP65 rating. Confirm RoHS compliance status if environmental regulations apply to the deployment site. Ensure the operating temperature range aligns with the intended installation environment specifications before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when a compact whip antenna with moderate gain is required for base station applications. The N-type female interface dictates compatibility with existing cabling and hardware. Consider the IP65 rating for installations exposed to harsh weather conditions where standard indoor antennas would fail prematurely.

Antennas RF Part Context

This component belongs to the SG1013 series of RF antennas from Nearson Inc. The series includes variants optimized for different frequency bands and connector types. The SG1013NF-2450 specifically targets the 2.4 GHz ISM band, distinguishing it from other models in the lineup that may support 915 MHz or dual-band operations.
