SG1015NM-2450

Antennas RF Overview

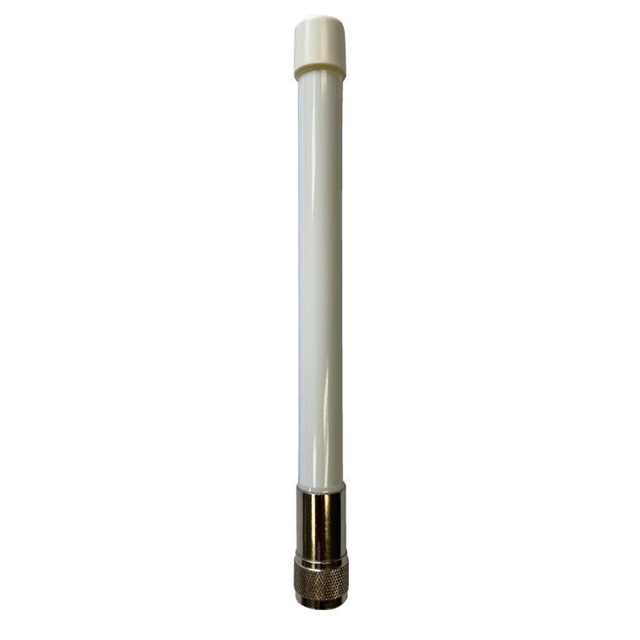

The SG1015NM-2450 is an outdoor portable omni-directional RF antenna manufactured by Nearson Inc. It operates within the 2.4 to 2.5 GHz frequency range, with a center frequency of 2.44175 GHz. The component features a straight whip design with N male connector mounting. Key electrical specifications include a peak gain of 5 dBi and a standing wave ratio (VSWR) of 2. The physical dimensions are approximately 21 mm in diameter and 205 mm in length, weighing roughly 75 grams. It holds an IP67 ingress protection rating for environmental durability.

Antennas RF Feature Summary

• Omni-directional radiation pattern suitable for general wireless communication applications
• IP67 rated construction ensuring resistance to dust and water immersion
• Ultra-violet resistant fiberglass material for outdoor longevity
• Straight whip form factor with N-type male connector interface

Antennas RF Applications

• General purpose wireless communication systems
• Outdoor portable radio equipment
• Base station auxiliary antennas

Antennas RF Procurement Notes

Verify the specific datasheet version from Nearson Inc. or authorized distributors to confirm current technical parameters. Ensure compatibility with N-type male connectors on the host device. Check for any recent updates to the IP67 rating or material specifications that may affect installation requirements. Confirm active status and lead times through official supply channels before finalizing procurement plans.

Antennas RF Selection Notes

Select this model when an omni-directional antenna is required for the 2.4-2.5 GHz band. The IP67 rating makes it suitable for harsh outdoor environments. Consider the 205 mm height constraint during mechanical design. The N male connector requires matching female ports on the receiving equipment. Verify that the 5 dBi gain meets system link budget requirements.

Antennas RF Part Context

This part belongs to Nearson Inc.'s line of RF antennas designed for wireless infrastructure. Similar models in the series include the SG1013NF-2450 base station antenna and the SG1019NM-915 variant operating at different frequencies. These components share common design philosophies focusing on durability and standard connectivity interfaces for industrial and commercial wireless deployments.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult Nearson Inc. directly for equivalent alternatives or cross-reference options based on specific electrical and mechanical constraints.
