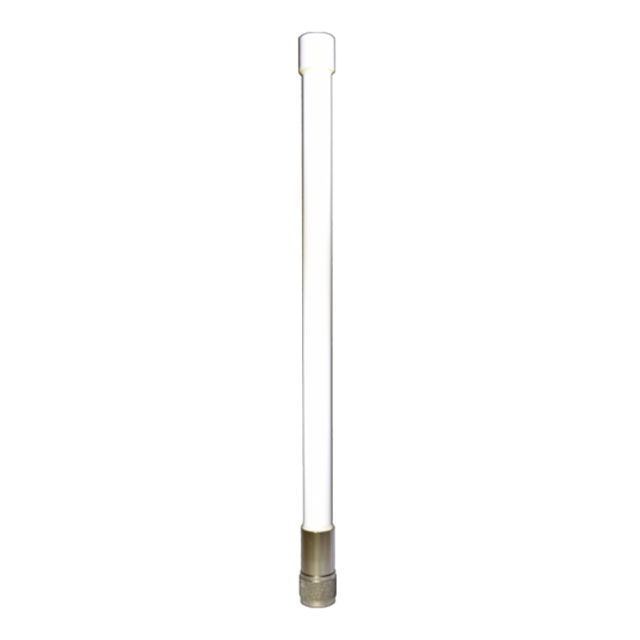

SG1017NM-2450

$45.31

Description：RF ANTENNA 2.4GHZ WHIP STR N MAL
Series：-
Mfr：Nearson Inc.
Package：Bulk

SKU:97e9abc8007c Category: RF Antennas Brand: Nearson Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SG1017NM-2450 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANTENNA 2.4GHZ WHIP STR N MAL. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SG1017NM-2450

Description：RF ANTENNA 2.4GHZ WHIP STR N MAL
Series：-
Mfr：Nearson Inc.
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.44175GHz
Frequency Range：2.4GHz ~ 2.4835GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2.5
Return Loss：-
Gain：7dBi
Features：-
Termination：N Type
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：20.787" (528.00mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for SG1017NM-2450

SG1017NM-2450

Antennas RF Overview

The SG1017NM-2450 is a UHF band RF antenna manufactured by Nearson Inc., designed for operation within the 2.4 GHz to 2.4835 GHz frequency range, with a center frequency of 2.44175 GHz. This straight whip antenna features an N-type male connector and provides a gain of 7 dBi. It exhibits a vertical beamwidth of 30 degrees and maintains a Voltage Standing Wave Ratio (VSWR) of 2.5. The component is classified as active and supports single-band functionality.

Antennas RF Feature Summary

Straight whip antenna design optimized for UHF band applications
N-type male connector interface for secure attachment
Ultra-violet resistant construction for environmental durability

Antennas RF Applications

Base station antenna systems
Wireless communication infrastructure
RF signal transmission in industrial environments

Antennas RF Procurement Notes

Verify the specific datasheet version provided by Nearson Inc. to confirm current manufacturing status and lead times. Ensure compatibility with existing N-type connectors and verify that the 7 dBi gain meets system requirements. Check for RoHS compliance documentation if required for your project specifications.

Antennas RF Selection Notes

Select this model when a fixed-gain, omnidirectional whip antenna is required for the 2.4 GHz ISM band. The N-type connector suits standard base station cabling. Consider the 30-degree vertical beamwidth for coverage patterns and ensure the UV-resistant housing aligns with outdoor deployment needs.

Antennas RF Part Context

This part belongs to Nearson's RF antenna portfolio, specifically targeting wireless communication sectors. It complements other models in the series by offering a standardized mechanical form factor with reliable electrical performance in the UHF spectrum, suitable for both indoor and outdoor installations.

Antennas RF Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate antennas with matching N-type connectors, 2.4 GHz frequency ranges, and similar gain specifications if replacement is necessary.
