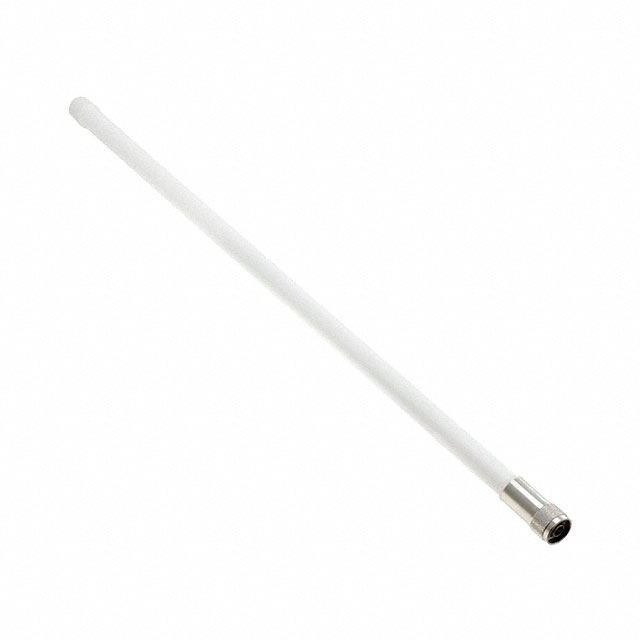

SG1019NM-868

$38.17

Description：RF ANT 868MHZ WHIP STR N CONN
Series：-
Mfr：Nearson Inc.
Package：Bulk

SKU:a7c246410f10 Category: RF Antennas Brand: Nearson Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SG1019NM-868 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 868MHZ WHIP STR N CONN. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SG1019NM-868

Description：RF ANT 868MHZ WHIP STR N CONN
Series：-
Mfr：Nearson Inc.
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：868MHz
Frequency Range：867MHz ~ 869MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：5dBi
Features：-
Termination：N Type
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：20.276" (515.00mm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for SG1019NM-868

SG1019NM-868

Antennas RF Overview

The SG1019NM-868 is a UHF whip antenna manufactured by Nearson Inc., designed for operation within the 867MHz to 869MHz frequency range. It features a straight whip design with an N-type connector mount interface, providing a gain of 5dBi. The component has a maximum height of 20.276 inches (515.00mm) and offers IP67 ingress protection. It is RoHS compliant and packaged in bulk.

Antennas RF Feature Summary

Straight whip antenna design with N-type connector mounting
IP67 rated ingress protection for environmental durability
RoHS compliant construction restricting hazardous substances

Antennas RF Applications

IoT sensor networks
Industrial automation systems
Embedded wireless communication modules

Antennas RF Procurement Notes

Verify the specific datasheet version from Nearson Inc. or authorized distributors to confirm current RoHS status and mechanical dimensions. Ensure the N-type connector compatibility matches the host device interface requirements before procurement.

Antennas RF Selection Notes

Select this model when a high-gain UHF antenna is required for 868MHz ISM band applications. The IP67 rating makes it suitable for outdoor or harsh industrial environments where moisture and dust resistance are critical operational factors.

Antennas RF Part Context

This component belongs to the SG1019 series of RF antennas from Nearson Inc. The series includes variants optimized for different frequency bands, such as the SG1015NM-2450 for 2.4GHz operations, allowing consistent mechanical form factors across different wireless standards.

Antennas RF Replacement Considerations

Direct substitutes include the SG101N-868, which shares similar UHF band characteristics. Verify that any replacement maintains the N-type connector interface and IP67 rating to ensure mechanical and environmental compatibility.
