SG1019NM-915

Antennas RF Overview

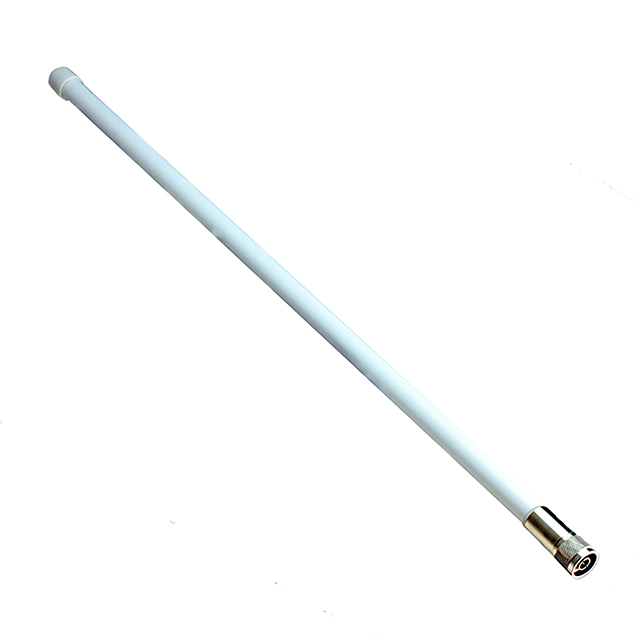

The SG1019NM-915 is an active UHF whip antenna manufactured by Nearson Inc., designed for operation within the 902MHz to 928MHz frequency range. Centered at 915MHz, this straight whip antenna features an N Type Male connector mount and provides a gain of 5dBi. It is packaged in bulk quantities and is currently listed as an active component suitable for ISM band applications.

Antennas RF Feature Summary

• Whip antenna design with straight configuration
• N Type Male connector mount interface
• Optimized for 915MHz ISM band operations

Antennas RF Applications

• Base station antenna systems
• UHF wireless communication links
• ISM band equipment integration

Antennas RF Procurement Notes

Verify the specific datasheet for mechanical dimensions and environmental ratings before integration. Confirm that the N Type Male connector aligns with existing system interfaces. Ensure the 902-928MHz operational range matches local regulatory requirements for ISM band usage. Check for RoHS compliance status if required by project specifications.

Antennas RF Selection Notes

Select this model when a fixed-mount whip antenna is required for UHF frequencies. The 5dBi gain offers moderate signal enhancement compared to lower-gain alternatives. The N Type connector ensures compatibility with standard RF cabling. Consider the bulk packaging format for assembly line integration rather than individual retail units.

Antennas RF Part Context

This component belongs to Nearson Inc.'s RF antenna portfolio, specifically targeting UHF applications. It shares the 915MHz center frequency designation with other models like the SG101N-915 but differs in form factor and connector type. The product line supports various mounting styles including swivel and base station configurations for diverse deployment scenarios.

Antennas RF Replacement Considerations

The SG1019NM-868 serves as a functional substitute for projects operating in the 868MHz band, maintaining similar physical characteristics. Verify connector compatibility and frequency alignment when substituting with other Nearson UHF antennas.
