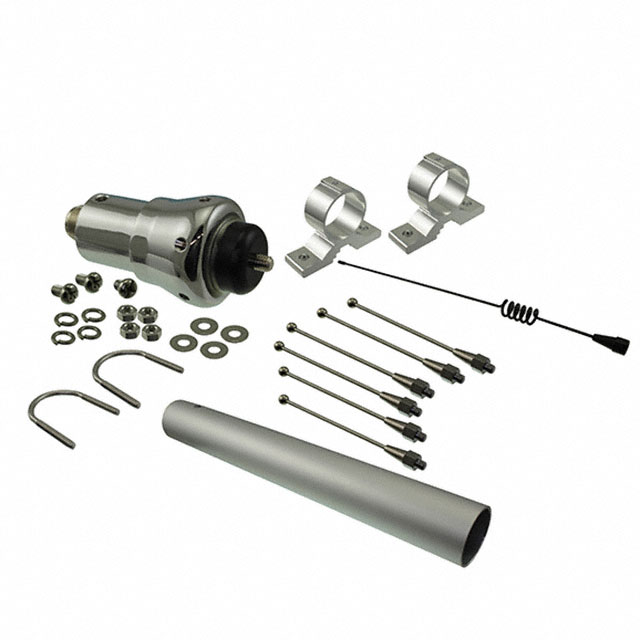

SG101N-868 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 868MHZ WHIP STR N CONN. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SG101N-868
- Description：RF ANT 868MHZ WHIP STR N CONN
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：868MHz
- Frequency Range：902MHz ~ 928MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：-
- Features：-
- Termination：N Type
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Bracket Mount
- Height (Max)：-
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for SG101N-868
Antennas RF Overview
The SG101N-868 is a UHF whip antenna manufactured by Nearson Inc., designed for operation within the 902MHz to 928MHz frequency range. It features a straight form factor with an N-type connector interface, suitable for bracket mounting applications. The component operates in the 300MHz to 1GHz frequency group and is specified for use at 868MHz. This RF antenna is RoHS compliant and lead-free, adhering to environmental standards for electronic components.
Antennas RF Feature Summary
- Straight whip design with N-type connector
- Bracket mount configuration
- RoHS compliant construction
Antennas RF Applications
- UHF RFID systems
- Industrial wireless communication
- IoT sensor networks
Antennas RF Procurement Notes
Verify the specific datasheet revision date, as specifications are subject to change without notice. Confirm that the N-type connector orientation and bracket mounting hardware meet your mechanical requirements. Ensure the operating frequency aligns with local regulatory bands for your deployment region. Check for any specific environmental ratings if outdoor usage is intended.
Antennas RF Selection Notes
Select this model when a fixed-frequency UHF antenna is required for bracket-mounted installations. The N-type connector provides a standard interface for many RF modules. Consider the straight whip geometry for omnidirectional coverage needs in the 902-928MHz band. Verify compatibility with existing cable assemblies and connectors before integration.
Antennas RF Part Context
This part belongs to Nearson Inc.'s RF antenna portfolio, specifically targeting UHF applications. It is distinct from other models by its specific 868MHz center frequency designation and N-type connector type. The product line includes various frequencies and connector styles for different industrial and commercial uses.
Antennas RF Replacement Considerations
Direct substitutes may include other Nearson UHF whip antennas with N-type connectors, such as the SG1019NM-868, provided frequency ranges match. Verify mechanical dimensions and mounting hole patterns to ensure physical compatibility. Electrical performance must be compared against original specifications.
