SG101N-915

Antennas RF Overview

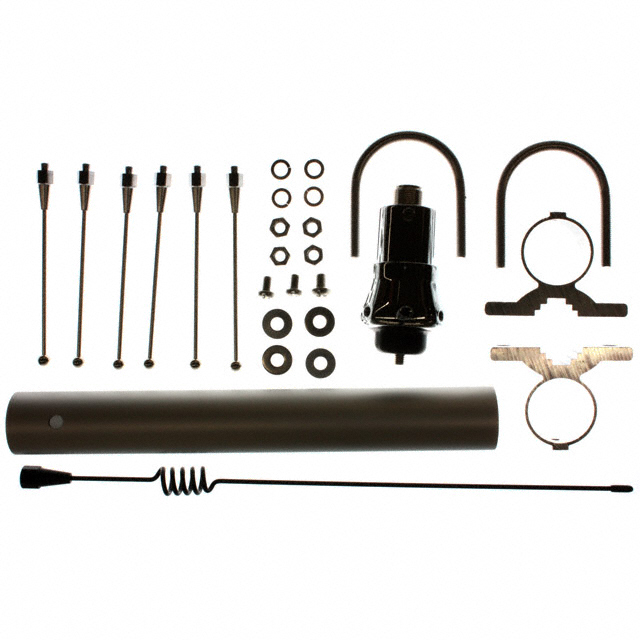

The SG101N-915 is an active RF antenna manufactured by Nearson Inc., designed for UHF frequency operations. It operates within the 902MHz to 928MHz band, centered at 915MHz. The component provides a gain of 5dBi and utilizes a whip-style, straight radiator configuration. Mechanical integration is facilitated through an N-type connector interface and a bracket mount design. This antenna falls under the general category of RF antennas and is classified as an active product with current availability status.

Antennas RF Feature Summary

• Whip-style straight radiator construction for omnidirectional signal transmission
• Bracket mount mechanical design with N-type connector interface
• Optimized for UHF band operation between 902MHz and 928MHz

Antennas RF Applications

• Base station antenna systems
• UHF wireless communication infrastructure
• RFID reader antenna integration

Antennas RF Procurement Notes

Verify part status and RoHS compliance directly with the manufacturer or authorized distributors before procurement. Confirm that the N-type connector orientation and bracket mounting specifications align with the intended installation environment. Ensure that the 902MHz to 928MHz frequency range meets local regulatory requirements for the target application region. Request official datasheets to validate electrical performance parameters against system design constraints.

Antennas RF Selection Notes

Select this model when a fixed-gain omnidirectional solution is required for UHF frequencies. The bracket mount style suits permanent installations where physical stability is prioritized over portability. Consider the N-type connector compatibility with existing cable assemblies. Evaluate the 5dBi gain level against link budget calculations to ensure adequate coverage for the specific deployment scenario without requiring additional amplification.

Antennas RF Part Context

This component belongs to the Nearson Inc. RF antenna family, specifically targeting base station and industrial communication applications. It serves as a dedicated radiating element for systems operating in the ISM UHF bands. The design emphasizes mechanical durability through its bracket mount structure while maintaining consistent radiation patterns via the whip configuration.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Cross-reference with other Nearson models sharing N-type connectors and similar frequency ranges if alternative sourcing is necessary. Verify mechanical dimensions and gain specifications carefully when considering generic UHF whip antennas from other manufacturers.
