SG102N-2450

Antennas RF Overview

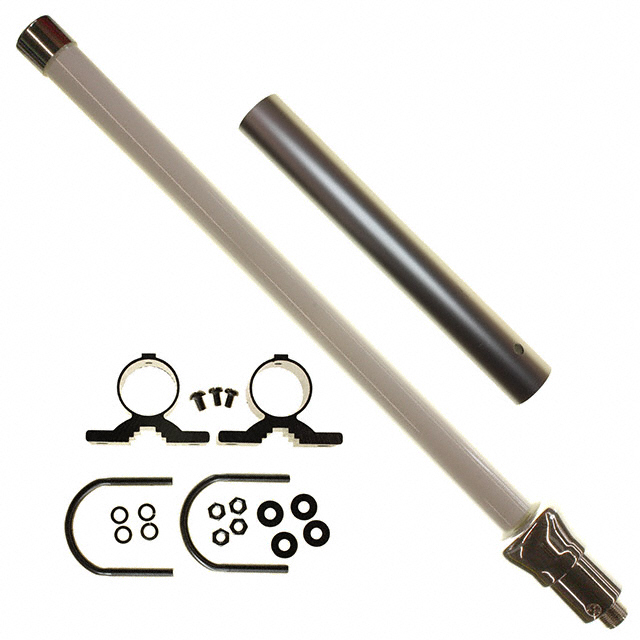

The SG102N-2450 is a whip-style RF antenna manufactured by Nearson Inc., designed for operation within the 2.4 to 2.5 GHz frequency range. It features an N-type female connector for termination and utilizes a connector mounting type. The unit has a maximum height of 15.748 inches (400.00 mm). The component is RoHS compliant and includes ultra-violet resistant properties suitable for outdoor or exposed environments.

Antennas RF Feature Summary

• Ultra-violet resistant construction for durability
• Whip-style omni-directional radiation pattern
• N-type female connector interface

Antennas RF Applications

• Wireless communication base stations
• Industrial IoT sensor networks
• Public safety radio systems

Antennas RF Procurement Notes

Verify the specific datasheet version from Nearson Inc. to confirm mechanical tolerances and environmental ratings. Ensure compatibility with existing N-type female ports on receiving equipment. Check for RoHS compliance documentation if required by local regulations. Confirm lead times directly with authorized distributors as manufacturing schedules may vary.

Antennas RF Selection Notes

Select this model when a vertical whip form factor is required for 2.4 GHz applications. The N-type female interface dictates mating connector requirements. Consider the 400 mm height constraint for installation clearance. UV resistance makes it suitable for permanent outdoor deployments where weathering is a concern.

Antennas RF Part Context

This component belongs to the SG102N series of RF antennas from Nearson Inc. The series typically includes variants optimized for specific frequency bands within the UHF spectrum. The SG102N-2450 specifically targets the 2.4 GHz ISM band, distinguishing it from other models in the lineup that may operate at different frequencies such as 900 MHz or 5 GHz.

Antennas RF Replacement Considerations

Direct substitutes include the SG103N-2450, which shares similar frequency and connector specifications but may differ in gain characteristics. Verify mechanical dimensions and mounting styles before swapping to ensure physical compatibility with the existing assembly.
