SG103N-2450 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 2.4GHZ WHIP STR N FEM. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for SG103N-2450
- Description：RF ANT 2.4GHZ WHIP STR N FEM
- Series：-
- Mfr：Nearson Inc.
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：8.5dBi
- Features：-
- Termination：N Type Female
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：23.622" (600.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for SG103N-2450
Antennas RF Overview

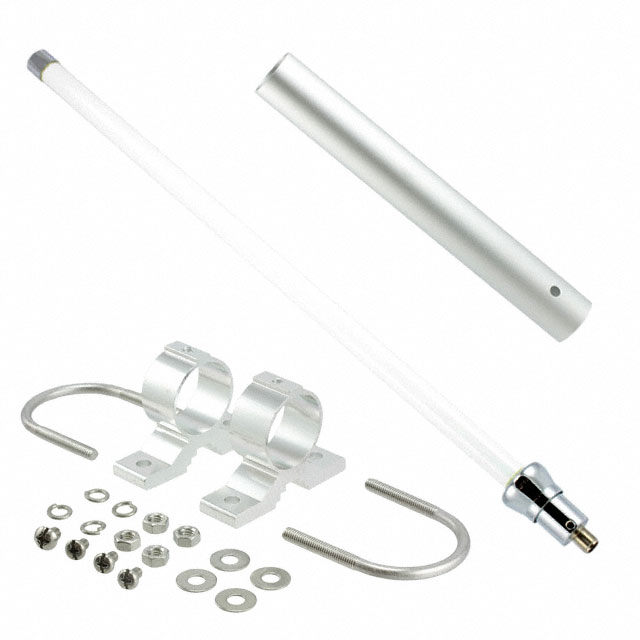

The SG103N-2450 is an omni-directional whip antenna manufactured by Nearson Inc., designed for base station applications. It operates within a frequency range of 2.4 to 2.5 GHz, providing a gain of 8.5 dBi. The unit features a straight form factor with an N-type female connector and measures 600.00 mm in maximum height. It is constructed with ultra-violet resistant materials and complies with RoHS standards.
Antennas RF Feature Summary
- Omni-directional radiation pattern suitable for broad coverage
- Ultra-violet resistant construction for outdoor durability
- Straight whip design with N-type female interface
Antennas RF Applications
- Base station installations
- Wireless communication systems operating in the 2.4-2.5 GHz band
Antennas RF Procurement Notes
Verify the specific part number SG103N-2450 against official Nearson Inc. documentation to confirm technical specifications. Ensure compatibility with existing N-type female connectors. Confirm RoHS compliance requirements if applicable to your project standards. Cross-reference datasheets for mechanical dimensions and environmental ratings before integration.
Antennas RF Selection Notes
Select this component when an omni-directional antenna with 8.5 dBi gain is required for the 2.4-2.5 GHz spectrum. The straight whip design and N-type connector dictate physical integration constraints. Verify that the 600 mm height fits the installation environment. Consider UV resistance for outdoor deployment scenarios.
Antennas RF Part Context
This model belongs to the Nearson SG103N series of RF antennas. It is categorized as a base station antenna within the manufacturer's portfolio. The product is distinct from other variants in the series by its specific frequency range and connector type configuration.
Antennas RF Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Nearson Inc. directly for equivalent models or cross-reference compatible base station antennas with matching electrical and mechanical specifications.
