SG104N-2450

Antennas RF Overview

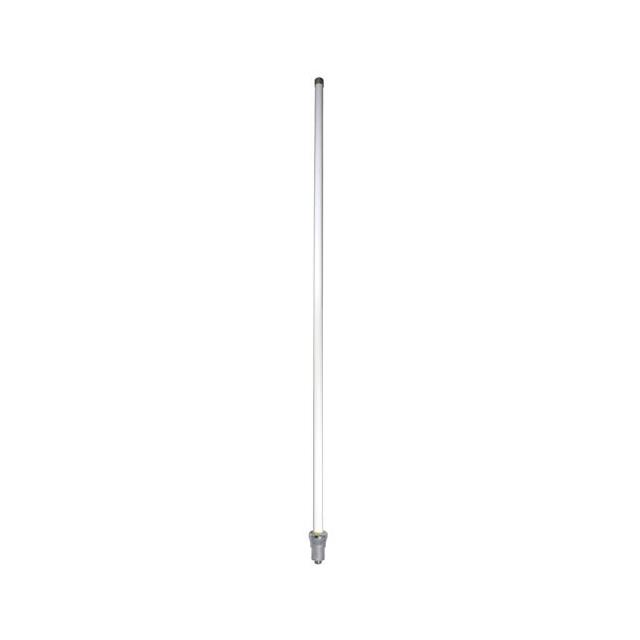

The Nearson SG104N-2450 is a general-purpose RF whip antenna designed for operation within the 2.4 GHz to 2.5 GHz frequency band, with a center frequency of 2.45 GHz. It features a straight form factor and utilizes an N-type female connector interface. This component belongs to the UHF frequency group (2GHz ~ 3GHz) and is intended for applications requiring reliable omnidirectional radiation patterns in the ISM band.

Antennas RF Feature Summary

• Straight whip design for compact integration
• Omnidirectional radiation pattern
• N-type female connector interface

Antennas RF Applications

• Wireless sensor networks
• Industrial telemetry systems
• General purpose RF communication links

Antennas RF Procurement Notes

Verify the specific datasheet for detailed electrical performance metrics such as gain, VSWR, and impedance. Confirm that the N-type female connector matches your system's mating hardware. Ensure environmental ratings align with deployment conditions. Cross-reference part numbers to distinguish between similar models like SG102N or SG103N variants.

Antennas RF Selection Notes

Select this model when a standard omnidirectional radiator is required for 2.4 GHz operations. The straight whip configuration suits space-constrained enclosures where vertical polarization is preferred. Verify compatibility with N-type connectors before integration into existing RF chains.

Antennas RF Part Context

This antenna is part of Nearson Inc.'s SG104N series, which includes variants for different frequency bands such as the SG104N-915 for sub-GHz applications. The SG104N-2450 specifically targets the 2.4 GHz ISM band, distinguishing it from other members of the family by its operating frequency range.

Antennas RF Replacement Considerations

Direct substitutes may include other 2.4 GHz whip antennas with N-type female connectors. Verify mechanical dimensions and mounting styles to ensure physical compatibility. Electrical parameters must be compared against original specifications.
