SG104N-915

$98.17

Description：RF ANT 915MHZ WHIP STR N FEM
Series：SG104
Mfr：Nearson Inc.
Package：Bulk

SKU:4bcdc68dd22b Category: RF Antennas Brand: Nearson Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SG104N-915 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Nearson Inc.. Its product description is RF ANT 915MHZ WHIP STR N FEM. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for SG104N-915

Description：RF ANT 915MHZ WHIP STR N FEM
Series：SG104
Mfr：Nearson Inc.
Package：Bulk
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：915MHz
Frequency Range：902MHz ~ 928MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：2
Return Loss：-
Gain：9dBi
Features：-
Termination：N Type Female
Ingress Protection：IP65
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：41.732" (106.00cm)
Applications：-
Power - Max：-

Antennas RF datasheet and documents for SG104N-915

SG104N-915

Antennas RF Overview

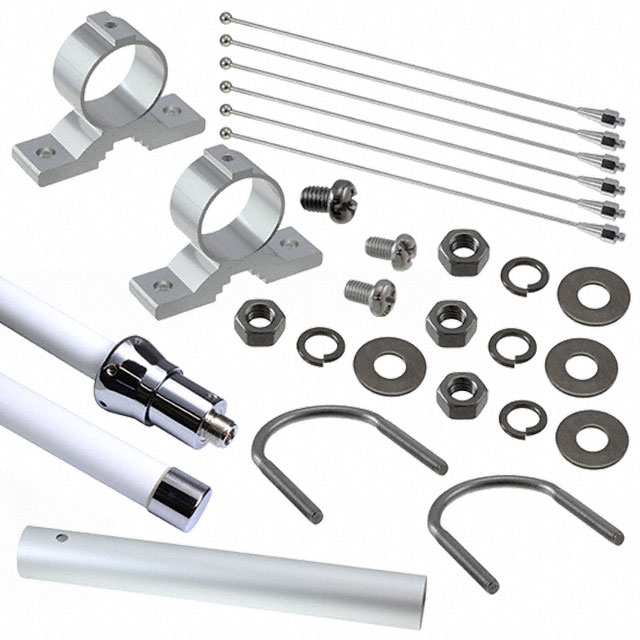

The SG104N-915 is a straight whip RF antenna manufactured by Nearson Inc., designed for operation within the 902 to 928 MHz frequency band. It features an omni-directional radiation pattern with a gain of 9 dBi and utilizes an N-type female connector for mounting. The unit has a maximum height of 106.00 cm (41.732 inches) and meets IP65 ingress protection standards. The component is RoHS compliant and constructed from fiberglass materials suitable for base station applications.

Antennas RF Feature Summary

Omni-directional radiation pattern for consistent signal coverage
High gain performance of 9 dBi in the 902-928 MHz range
IP65 rated enclosure for environmental protection
Straight whip design with N-type female connector interface

Antennas RF Applications

Base station antenna installations
RFID system infrastructure
Industrial wireless communication networks

Antennas RF Procurement Notes

Verify the specific connector type and frequency band compatibility against project requirements before ordering. Confirm that the IP65 rating meets environmental exposure needs. Ensure the N-type female interface matches existing cable assemblies. Check RoHS compliance status if required by regulatory standards. Validate physical dimensions against available mounting space constraints.

Antennas RF Selection Notes

Select this model when a high-gain, omni-directional solution is required for the 902-928 MHz band. Consider the 106 cm height for structural mounting clearance. The IP65 rating makes it suitable for outdoor or harsh environments. Compare against other SG104 series variants if different frequencies or connector types are needed. Ensure the fiberglass construction aligns with durability requirements.

Antennas RF Part Context

This component belongs to the SG104 series of RF antennas from Nearson Inc. The series includes various models tailored for different frequency bands, such as the SG104N-2450 for 2.4 GHz operations. The SG104N-915 specifically targets sub-GHz applications, maintaining consistent form factor and mounting characteristics across the family while varying electrical parameters.
