SG7050CAN 14.745600M-TJGA3

Oscillators Overview

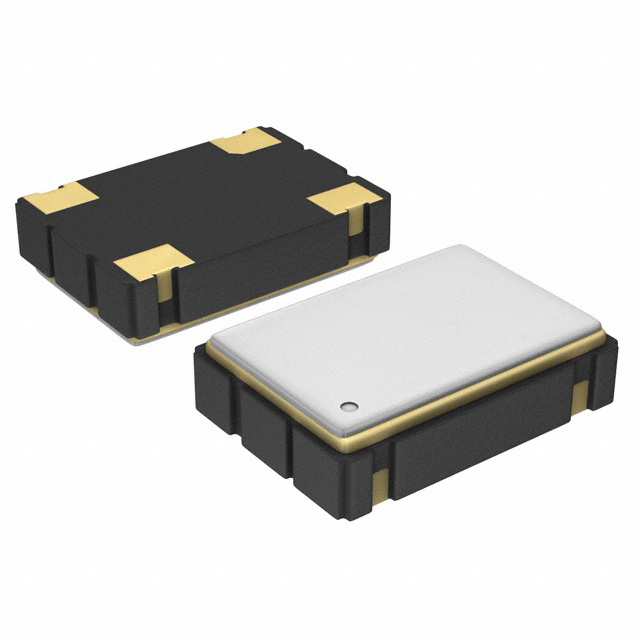

The SG7050CAN 14.745600M-TJGA3 is a standard clock oscillator manufactured by Epson Timing. It operates at a frequency of 14.7456 MHz with a stability of ±50 ppm. The device supports supply voltages from 1.6 V to 3.63 V and features CMOS output format. It is housed in a 4-SMD, no lead package measuring 7 mm x 5 mm. The component functions within a temperature range of -40°C to +85°C and includes standby functionality.

Oscillators Feature Summary

• CMOS output signal generation for digital logic interfacing
• Integrated standby mode for power reduction
• Surface-mount construction for automated assembly

Oscillators Applications

• Medical equipment timing circuits
• Industrial control systems
• Consumer electronics baseband processing

Oscillators Procurement Notes

Verify the specific suffix TJGA3 against the manufacturer datasheet to confirm tape and reel packaging specifications. Ensure the operating voltage requirements align with the system design limits before procurement. Cross-reference the RoHS compliance status with current regulatory standards for the target market.

Oscillators Selection Notes

Select this component when a precise 14.7456 MHz reference is required for audio or video synchronization applications. The ±50 ppm stability suits general-purpose digital interfaces. Consider the 7x5 mm footprint constraints during PCB layout planning to ensure adequate clearance for the SMD package.

Oscillators Part Context

This part belongs to the SG7050CAN series of standard crystal oscillators from Epson. The series offers various frequencies and stability options in a compact surface-mount form factor. It is designed for high-volume manufacturing environments requiring reliable clock signals for microprocessors and communication interfaces.

Oscillators Replacement Considerations

Direct substitutes include other SG7050CAN variants with identical electrical parameters but different frequencies. Verify pin compatibility and thermal characteristics when considering alternative manufacturers' equivalent parts.
