SG7050EAN 75.000000M-KEGA3

Oscillators Overview

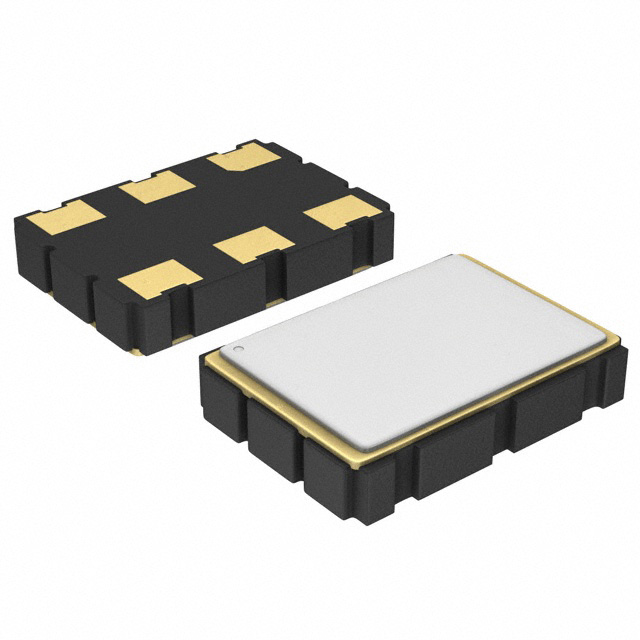

The SG7050EAN 75.000000M-KEGA3 is a crystal oscillator (XO) manufactured by EPSON, designed for surface-mount applications. It operates at a fundamental frequency of 75.000000 MHz with an LVPECL output type. The device supports a supply voltage range of 2.5V to 3.3V and features enable/disable functionality. It is housed in a compact 6-SMD, no-lead package measuring 7.00mm x 5.00mm x 1.60mm maximum height. The component exhibits a frequency stability of ±30ppm and operates within a temperature range of -40°C to +85°C. Maximum supply current is 65mA during operation.

Oscillators Feature Summary

• Provides stable LVPECL clock signals for high-speed digital interfaces
• Supports active enable and disable control for power management
• Designed for reliable operation across extended industrial temperature ranges

Oscillators Applications

• High-performance computing systems requiring precise clock synchronization
• Telecommunications infrastructure equipment
• Industrial automation controllers

Oscillators Procurement Notes

Verify the specific model suffix KEGA3 against official EPSON documentation to ensure compatibility with required frequency tolerance and load capacitance specifications. Confirm that the LVPECL output configuration matches the receiving circuit's input requirements. Ensure the 6-SMD footprint dimensions align with the target PCB layout constraints before finalizing procurement orders.

Oscillators Selection Notes

Select this component when LVPECL signaling is required for noise immunity and high-speed data transmission. Consider the ±30ppm stability requirement against system jitter budgets. Evaluate the 65mA current consumption against available power rails. Verify that the operating temperature range meets the environmental conditions of the intended deployment scenario.

Oscillators Part Context

This part belongs to the SG7050 series of surface-mount crystal oscillators from EPSON. The series is characterized by low phase noise and high reliability. The SG7050EAN variant specifically denotes the package style and output type configuration within the broader product line designed for demanding electronic applications.

Oscillators Replacement Considerations

Cross-reference with EPSON part number X1G004291002612 for potential equivalent sourcing options. Verify pinout compatibility and electrical parameters before substituting with other manufacturers' components.
