SH-202

Overview

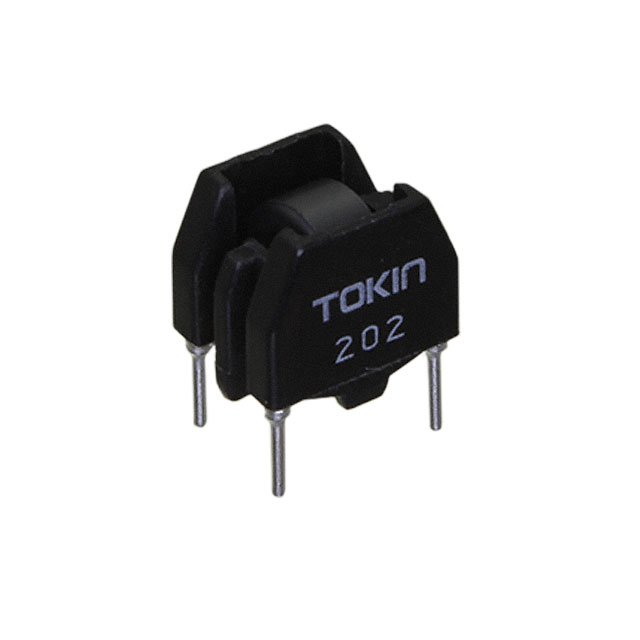

The KEMET SH-202 is a DC line filter designed for common mode noise suppression. It features an inductance of 1500 nH and supports a maximum DC current of 3 A. The component has a rated voltage of 150 V DC and a maximum DC resistance of 0.0200 ohms. It utilizes a through-hole mount installation type with a DIP-4 package configuration. The physical dimensions are specified as 12.5 mm length, 10.0 mm width, and 12.0 mm height.

Feature Summary

• Provides common mode filtering for DC lines
• Supports high current applications up to 3 A
• Utilizes through-hole mounting for robust integration

Applications

• DC power line filtering
• Data line protection
• Industrial equipment noise suppression

Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement. Confirm that the 150 V DC rating and 3 A current capacity align with the target circuit requirements. Ensure the DIP-4 through-hole package fits the PCB layout constraints. Check for any lead-free or specific packaging variations if required by manufacturing standards.

Selection Notes

Select this component when common mode noise reduction is required on DC lines carrying up to 3 A. The 1500 nH inductance provides effective filtering for standard data and power lines. The through-hole design offers mechanical stability compared to surface-mount alternatives. Ensure the operating environment does not exceed the 80 C maximum temperature rating.

Part Context

The SH series from KEMET includes various DC line filters. This specific model focuses on common mode suppression with a compact footprint. It serves as a passive component for electromagnetic interference mitigation in electronic systems requiring reliable DC line protection.

Replacement Considerations

No public confirmed substitute part numbers are available.
