Product Detailed Parameters
- Description：CMC 7.5UH 3A 2LN TH
- Series：SH
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：26mOhm
- Voltage Rating - DC：150V
- Voltage Rating - AC：-
- Operating Temperature：-25°C ~ 80°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.492" L x 0.394" W (12.5mm x 10.00mm)
- Height (Max)：0.472" (12.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：7.5 µH @ 100 kHz
- Qualification：-
- Grade：-
Download product information
Overview

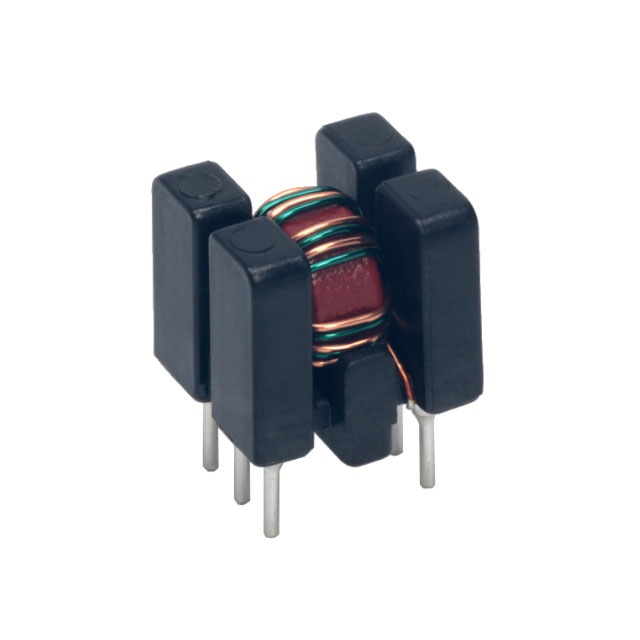

The KEMET SH-302 is a through-hole common mode choke designed for signal line applications. It features a nickel-zinc ferrite core and provides an inductance of 7,500 nH at 100 kHz. The component supports a current rating of 3 A with a DC resistance of 26 mOhm. It operates within a temperature range of -25°C to +80°C and utilizes a UL94 V-0 flame retardant rated terminal base.
Feature Summary
- Utilizes a nickel-zinc ferrite core for effective signal filtering
- Features a UL94 V-0 flame retardant rated terminal base
- Designed for through-hole mounting on signal lines
Applications
- Signal line common mode noise suppression
- Electronic equipment requiring through-hole chokes
Procurement Notes
Verify the specific manufacturer designation as sources attribute this part to both KEMET and YAGEO Group. Confirm the operating temperature range (-25°C to +80°C) and physical dimensions against the official datasheet before integration. Ensure the supplier documentation matches the required electrical specifications for your design.
Selection Notes
Select this component for applications requiring through-hole common mode chokes with a 7,500 nH inductance. Consider the 3 A current rating and low DC resistance for signal integrity. Verify compatibility with the -25°C to +80°C operating environment and UL94 V-0 safety requirements.
Part Context
The SH-302 belongs to the SH series of common mode chokes. These components are engineered for signal processing circuits where noise reduction is critical. The through-hole construction facilitates robust mechanical attachment in various electronic assemblies.
Replacement Considerations
Cross-reference with other through-hole common mode chokes offering similar inductance and current ratings. Verify pinout compatibility and thermal characteristics when substituting.
