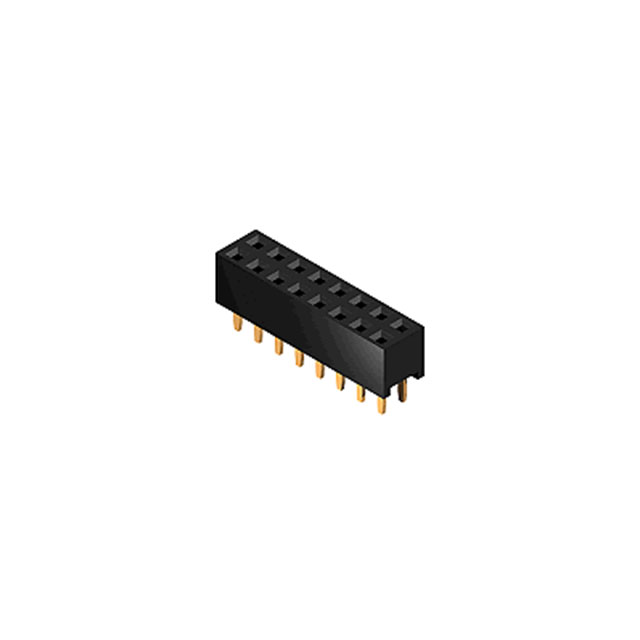

SH2-16G is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists On Shore Technology Inc.. Its product description is CONN RCPT 16POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for SH2-16G
- Description：CONN RCPT 16POS 0.1 GOLD PCB
- Series：SH
- Mfr：On Shore Technology Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Forked
- Style：-
- Number of Positions：16
- Number of Positions Loaded：All
- Pitch - Mating：0.100" (2.54mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Insulation Color：Black
- Insulation Height：0.331" (8.40mm)
- Contact Length - Post：0.124" (3.15mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：-
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for SH2-16G
Headers, Receptacles, Female Sockets Overview
The SH2-16G is a 16-position female receptacle connector manufactured by On Shore Technology Inc. It features a 0.100 inch (2.54mm) pitch and utilizes through-hole mounting for PCB integration. The contacts are gold-plated to ensure reliable signal transmission. This component is designed as a double-row socket with a current rating of 3.0A AC/DC and a voltage rating of 250V AC.
Headers, Receptacles, Female Sockets Feature Summary
- Gold-plated contacts for enhanced conductivity
- Through-hole mounting configuration
- Double-row receptacle design
Headers, Receptacles, Female Sockets Applications
- General electronic circuit interconnections
- PCB-to-wire harness connections
- Industrial control panel assemblies
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific datasheet version when sourcing, as manufacturing revisions may occur. Confirm that the required RoHS compliance status matches project specifications. Ensure the through-hole footprint aligns with the target PCB layout before finalizing procurement orders.
Headers, Receptacles, Female Sockets Selection Notes
Select this part when a 16-position double-row female header is required for through-hole applications. The 2.54mm pitch is standard for many commercial electronics. Consider the 3.0A current rating for load requirements. Verify mechanical stability needs against the through-hole retention strength.
Headers, Receptacles, Female Sockets Part Context
This component belongs to the SH2 series of headers and receptacles from On Shore Technology Inc. The series offers various pin counts and configurations for board-to-board or wire-to-board connections. The 'G' suffix typically denotes gold plating on the contact surfaces.
Headers, Receptacles, Female Sockets Replacement Considerations
Cross-reference with other 16-pin, 2.54mm pitch double-row female sockets. Verify identical pin count, pitch, and mounting style before substitution. Check if alternative manufacturers offer compatible mechanical dimensions and electrical ratings.
